SAT-11-3.18-064100: Arbor, Tiloc ® UP Ø.1250" x.045 Hub, ER11 Shank, Flange Ø6.4x10m

Login Required
2
GSI Part
4800-000208
ER Taper Size
ER11
TIR
< .0002in
ID of Saw (D1)
.125in
Extension Dia. (D2)
6.4mm
Journal Width (L1)
1.27mm
Extension Length (L2)
10mm
Nut Length
5mm
Thread Length
5mm
"

The Ti-Loc® Swiss Clamp Saw Arbors. This Taper-integrated small saw arbor is designed to work with virtually any collet or tool holder that employs the dual angle ER collet system (DIN6499)

• Reduces Tolerance “Stacking” for low TIR
• Directly Mounts to ANY ER Taper Live or Static Tool Position
• Increases Rigidity During Slitting Saw Operations and adds repeatable location.
• Enables QUICK CHANGE of tooling

The Ti-Loc® System works with any existing tool holder *most* ER collet clamping nuts. Simply insert the Ti-Loc holder into any ER nut and twist to align the locking cam profile.

"""
Related Products
3002-0.8-10 L UHM20 HPX

3002-0.8-10 L UHM20 HPX

Learn More & Buy
SVJPR/1600L-1616 K10 Twin IC

SVJPR/1600L-1616 K10 Twin IC

Learn More & Buy
1606-2-4-60 R E0.3 UHM20 HPX

1606-2-4-60 R E0.3 UHM20 HPX

Learn More & Buy
RBT-0828-02.512T-NF: Hex  .0987-.0991  L2=.149   Shk Ø8x28  Gr GSX       Vented    Neu Fa

RBT-0828-02.512T-NF: Hex .0987-.0991 L2=.149 Shk Ø8x28 Gr GSX Vented Neu Fa

Learn More & Buy

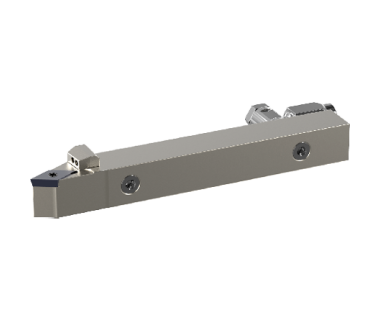

SDNCN 5/8"K11 U IC

SDNCN 5/8"K11 U IC

Learn More & Buy

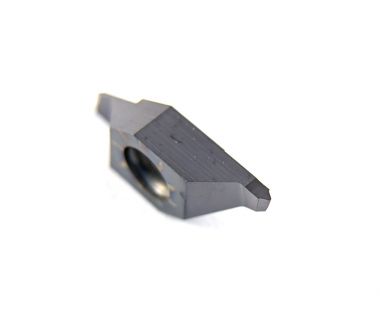

1606-0.2-60 VP R UHM20
