EZR20-KIT: EZR 20 Kit

Login Required
0
We don't have this product in stock now, items will be replenished soon and can still be ordered but will have a delivery delay.
GSI Part
1016-000140
Component Type
EZR Swiss Clamp Kit
Collet Size
ER20
"

The EzR Swiss Clamp Nuts are an upgrade over standard ER Hex-type clamping nuts or low-profile mini nuts. An innovative drive system coupled with the EzR Drive socket keeps the machine operator's hands and arms clear of sharp tooling thus preventing injury while enabling proper high-torque settings to be achieved.

The unique drive feature of EzR Nuts also lock to the drive socket, reducing the chance of the nut falling into the machine sump and getting lost.

  • EzR Nuts are high-speed balanced and can be used on live or static tool holders employing the DIN6499 spec ER Collet system
  • EzR Nuts are compatible with coolant disc products or steel sealed ER Collets for Coolant-Thru applications



EzR Swiss clamp kits include (6) ER20 EzR Swiss clamp  nuts, (1) wrench adaptor, (1) extended wrench adaptor, and (1) EzR spanner.

"""
Related Products
SAT-16-3.18-064180: Arbor, Tiloc ® UP      Ø.1250" x.045 Hub, ER16 Shank, Flange Ø6.4x18m

SAT-16-3.18-064180: Arbor, Tiloc ® UP Ø.1250" x.045 Hub, ER16 Shank, Flange Ø6.4x18m

Learn More & Buy

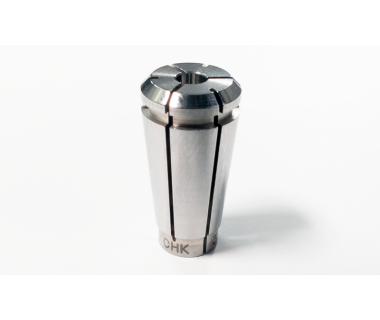

CC-CHK-3.0 UP
