UMMB 20200 x 0075 S30 HMP700
5
- GSI Part
- 7006-270200
- Series
- Micro Ball Nose - UMMB
- Cut Length to Diameter
- 0.75 x Dia.
- Number Of Flutes
- 2
- Flute Dia. (in)
- 0.0787in
- Flute Dia. (mm)
- 2.00mm
- Length of Cut (in)
- 0.0591in
- Length of Cut (mm)
- 1.50mm
- Shank Dia (in)
- 0.1181in
- Shank Dia (mm)
- 3.00mm
- OAL (in)
- 1.4961in
- OAL (mm)
- 38.00mm
- Helix Angle
- 30°
- Material
- Carbide
- (Coating)
- HMP700
- Coolant-Thru
- No

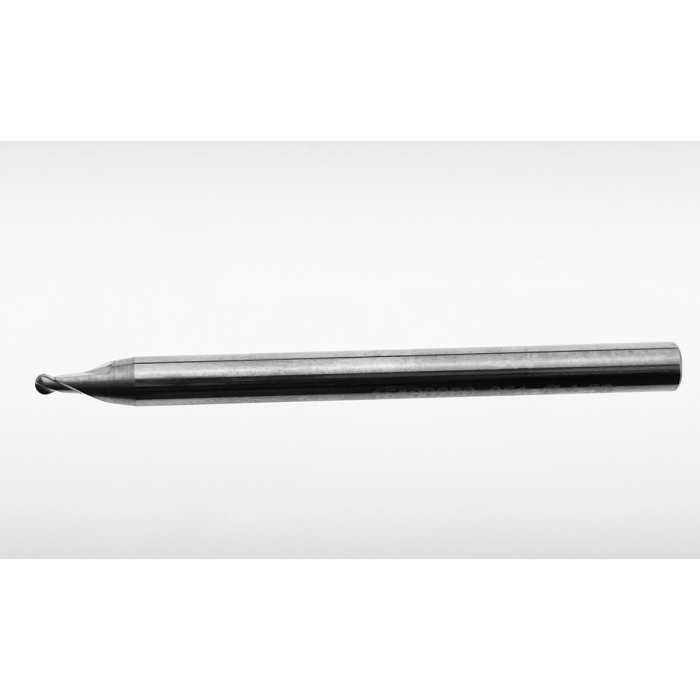

Micro Solid Carbide Ball Nose End Mill with Center Cut and without tooth pitch. Economical, process-safe and precise even for hard-to-handle materials.
