UMMB 20040 x 03 S30 HMB
0
- GSI Part
- 7006-270169
- Series
- Micro Ball Nose - UMMB
- Cut Length to Diameter
- 3 x Dia.
- Number Of Flutes
- 2
- Flute Dia. (in)
- 0.0157in
- Flute Dia. (mm)
- 0.40mm
- Length of Cut (in)
- 0.0472in
- Length of Cut (mm)
- 1.20mm
- Shank Dia (in)
- 0.1181in
- Shank Dia (mm)
- 3.00mm
- OAL (in)
- 1.4961in
- OAL (mm)
- 38.00mm
- Helix Angle
- 30°
- Material
- Carbide
- (Coating)
- Uncoated
- Coolant-Thru
- No

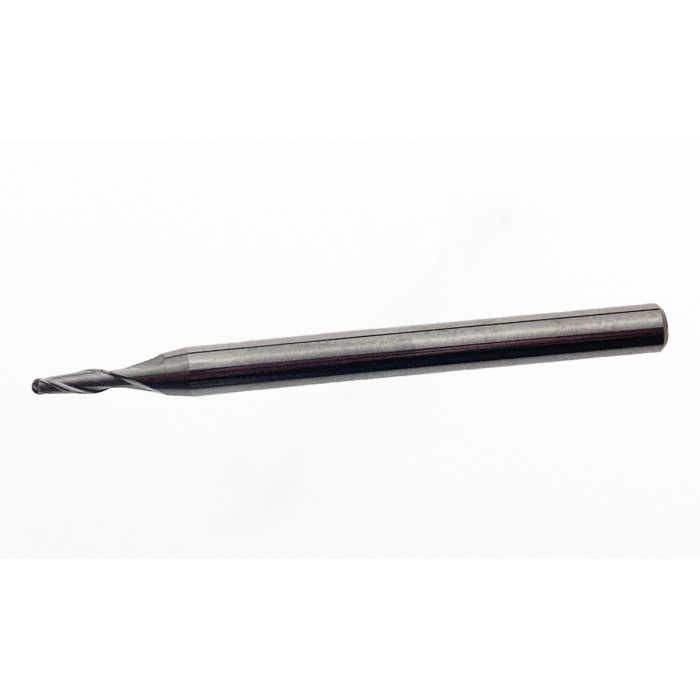

Micro Solid Carbide Ball Nose End Mill with Center Cut and without tooth pitch. Economical, process-safe and precise even for hard-to-handle materials.
