5000-2.0-1/2"x100 L 26
26
- GSI Part
- 7005-556651
- Holder Type
- CutOff/Groove - Main Spindle Clearance
- Operation Type
- All
- Shank Type
- Square
- Execution
- Left Hand
- Max Barstock Dia.
- 26 mm
- Insert Type
- CUT 5000
- Shank Width (h)
- 1/2 in
- Shank Height (b)
- 1/2 in
- Shank Length (l)
- 100 mm
- (l1)
- 100 mm
- (lg)
- Carbide
- (x1)
- 6 mm
- (x2)
- 2 mm
- Insert Thickness mm
- 2.0 mm
- (dmax)
- 26 mm
- (h1max)
- 6 mm

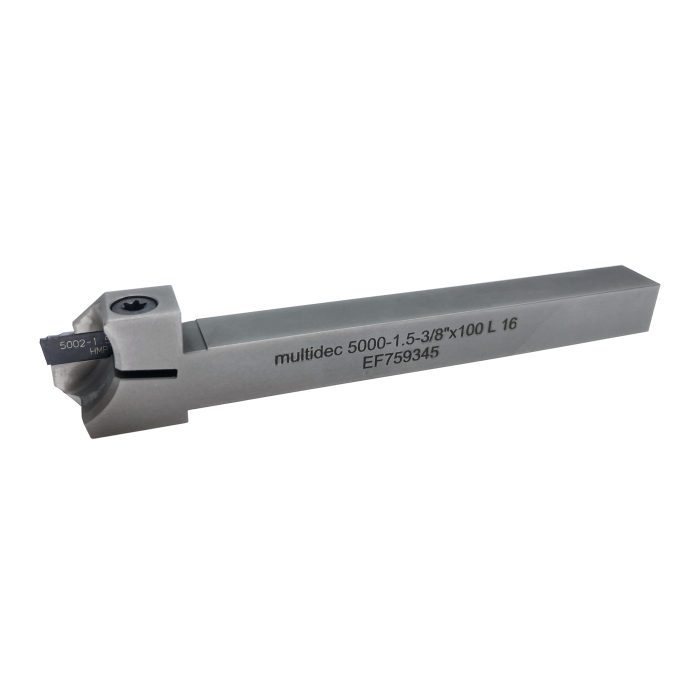

5000 Tool Holder
Left Hand Standard Cut
multidec® 5000 Series provides high-performance cut-off tools that are made for sliding headstock lathes in Swiss-type CNC machines.
multidec®-5000 tool holders are available without internal coolant or with internal coolant. Depending on the machine configuration, the clamping screw can be mounted on the top or bottom side, allowing easy access for changing the multidec® 5002 Inserts.
- Standard holder without internal coolant
- Compatible with multidec® 5002 Inserts (match cut orientation and width of cut)
- Sophisticated design prevents vibration
