5002-3.0-EN C60 HMP835
50
- GSI Part
- 7005-553691
- Series
- 5000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- C60 Chip Breaker
- Execution
- Neutral Cut
- Coating
- HMP835
- Insert Material
- Carbide
- Width Of Cut (a)
- 3.0 mm
- Nose Radius (r)
- 0.2 mm
- (l)
- 21.1 mm
- Tolerance
- ±0.04
5002 C60 Cut-Off Inserts
With C60 Chip Breaker
multidec® 5000 Series provides high-performance cut-off tools that are made for sliding headstock lathes in Swiss-type CNC machines. The four chip breakers available in 1.5 mm, 2.0 mm, 3.0 mm insert widths are designed to meet the highest requirements for efficient production, even in difficult-to-machine materials. multidec® 5000 Series inserts fit the multidec® 5000 Series tool holders, based on orientation left/right/neutral, and coolant-thru vs. non-coolant-thru holders.
The 5002 Insert with C60 chip breaker delivers a medium to heavy cut with excellent chip control. Available in carbide with HMP835 grade coating.

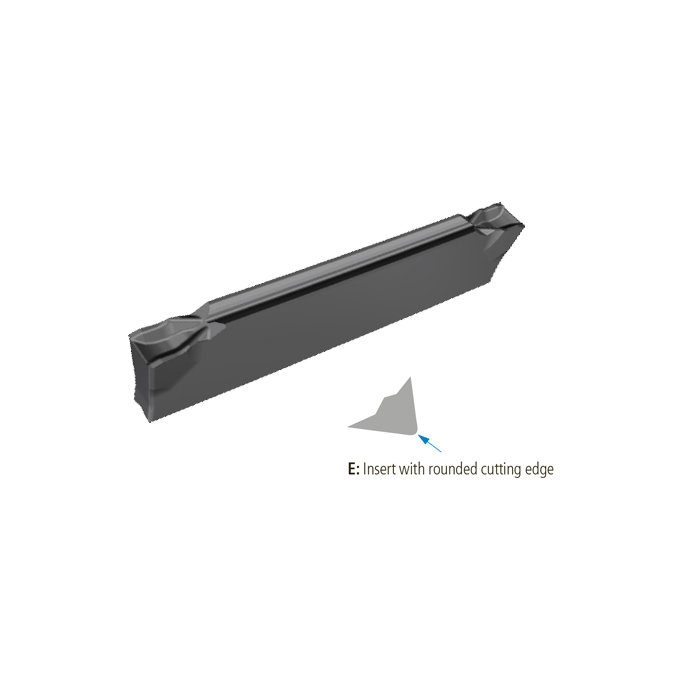

- Round cutting edge
- Two cutting edges per insert
- Very good resistance to interrupted cut
- Grade HMP835: Tough grade for difficult machining conditions, enables high feed rates
