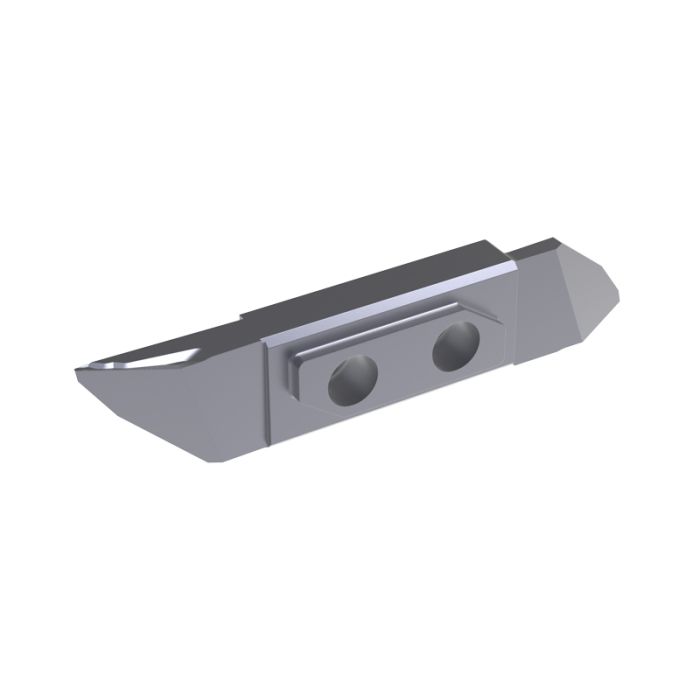

3004-3.2-6 FLV 29008 GB20 UHM20
- GSI Part
- 7005-211439
- Series
- CUT3000
- Operation/Geometry
- Profile Turn
- Chip Breaker
- GB20 Chip Breaker
- Execution
- Left Handed Inverted Cut
- Coating
- UHM20 Uncoated
- Depth Of Cut (c)
- 11 mm
- Width Of Cut (a)
- 3.2 mm
- Relief Angle (β)
- 59°
- Nose Radius (r)
- 0.08 mm
- Clearance (α)
- 29°
- Edge Sharpness
- Sharp
- (t)
- 5.5 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
Type-GB20 Chip Breaker
Back-Turning Inserts
Armed with an extremely sharp cutting edge with multi-stage chip breakers, the GB20 chip breaker enhances the creation of back turned profi les with process-reliable chip formation at low and high cutting depths as well as across low and high feed rates.
NOTE: Not recomended for use in plastics and titanium due to lower tool life in these materials. Check speeds and feeds for proper usage.
