1602-1.5-5 FLN GT20 UHM20

Call for availability or request a quote now.

GSI Part: 7005-211196

Series: CUT 1602

Operation/Geometry: Cut-Off

Chip Breaker: GT20 Chip Breaker

Execution: Left Handed Neutral Cut

Coating: UHM20 Uncoated

Insert Material: Carbide

Depth Of Cut (c): 5 mm

Width Of Cut (a): 1.5 mm

Nose Radius (r): 0.05 mm

Edge Sharpness: Sharp Cutting Edge

Repeatability: <10µm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

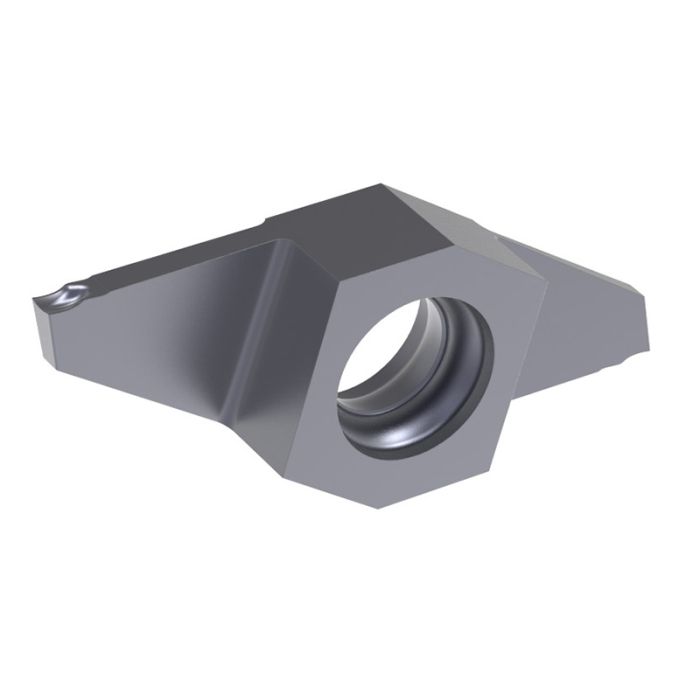

CUT1602 SC TOP Cut-Off and Turn Inserts

With Type-SC Chip Control & TOP Wiper Geometry

multidec® 1602 SC TOP turning inserts are designed for cut-off and turn operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.

Cut-off and turn operations
1.5mm (.0591in) insert widths
TOP wiper geometry - Improved surface finish
Type-SC chip control: Cut-off inserts armed with the type-SC Chip Control are ideal for hard materials. This Chip Control is quite universal, used in roughing, finishing, and micro finishing. The TOP wiper geometry enables the cut-off insert to turn with improved surface finish due.
