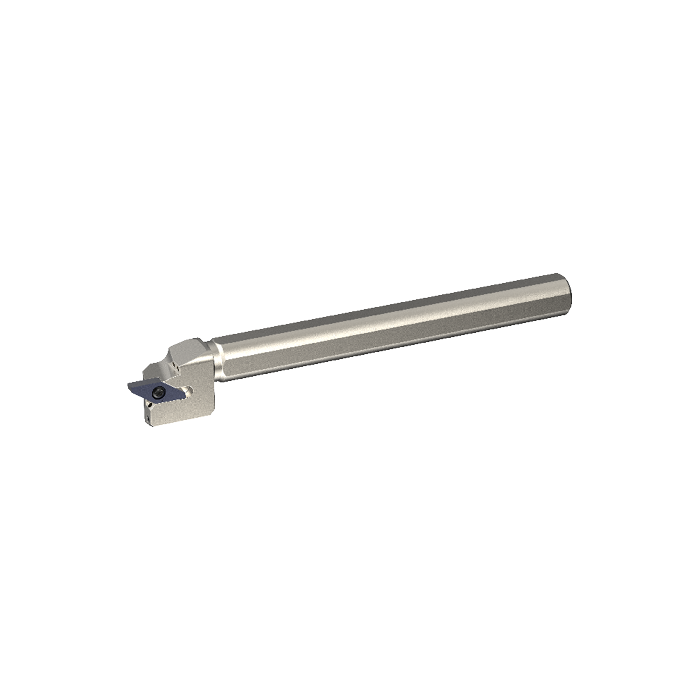

1600-25x125 00 RD L IC+
0
- GSI Part
- 7005-193523
- Holder Type
- Face Grooving
- Operation Type
- Face Grooving
- Shank Type
- Round
- Repeatability
- < 20µm
- Rear Coolant Port Size (d)
- 25 mm
- Insert Type
- CUT 1600
- Shank Width (h)
- 24 mm
- Shank Height (b)
- 25 mm
- Shank Length (l)
- 125 mm
- (x1)
- 13.25 mm
- (z1)
- 23 mm
- Insert Thickness mm
- 3 mm
- (f)
- 12.5 mm
- (hmax)
- 5 mm
CUT 1600 IC+ Holder
multidec® 1600 Series Swiss Tools are designed for micro-turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125 inch diameter. Tough carbide grades combined with a variety of coatings enhance tool life in tough materials typically machined in Swiss-type applications.
The IC+ program offers a wide range of holders with integrated cooling. Because of the high precision and pressure, it is possible to discharge the chip quickly and safely from the cutting edge and the workpiece, which protects the cutting edge of the insert. This provides significantly longer tool life as well as very reliable serial production.
- Coolant-Thru
- Repeatability within .0004in
- All holders feature five possible coolant inputs
- Fixed coolant exit allows for small set-up in front of the holder
- High pressure cooling from two directions
- Compatible with CUT1600 Indexable Inserts (match left/right orientation and width of cut to holder)
