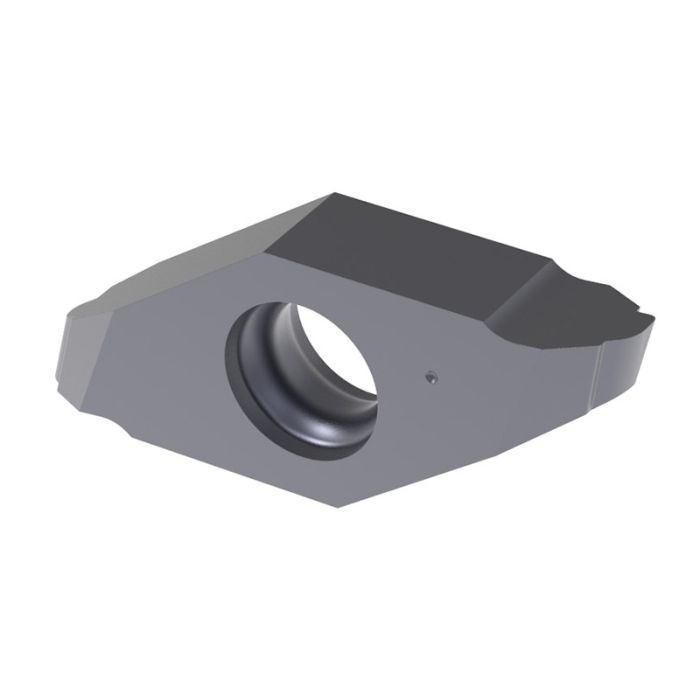

1606-HB4.0 VP R UHM20
0
- GSI Part
- 7005-153934
- Series
- CUT 1606
- Operation/Geometry
- Threading
- Thread Profile
- Butress HA
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Coating
- UHM20 Uncoated
- Relief Angle (β)
- 5°
- (P) Pitch mm
- 1.75 mm
- Repeatability
- <20µm
- (t)
- Metric
- Tolerance
- 0/-0.15
- (a1)
- 1.03 mm
- (a2)
- 1.03 mm
- (e)
- 0.1 mm
- Turning Inserts (r4)
- 0.8 mm
- Turning Inserts (r5)
- 0.3 mm
CUT1606 HB Full Profile Threading Inserts - HB Buttress Form
multidec® 1606 turning inserts are designed for threading operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Uncoated
- Full profile threading geometry
- Featuring ISO5835 HB4.0 - HB6.5
- HB buttress form
