1600R/1600R-3/4"x125 Twin
0
- GSI Part
- 7005-153679
- Holder Type
- Twin
- Operation Type
- All
- Shank Type
- Square
- Repeatability
- <20µm
- Execution
- Right Hand
- Coolant Capable
- No
- Max Barstock Dia.
- 34 mm
- Insert Type
- CUT 1600
- Shank Width (h)
- 0.75 in
- Shank Height (b)
- 0.75 in
- Shank Length (l)
- 125 mm
- (x1)
- 24 mm
- (x2)
- 7 mm
- (x3)
- 14 mm
- (z1)
- 20 mm
- Insert Thickness mm
- 3 mm
- (dmax)
- 34 mm

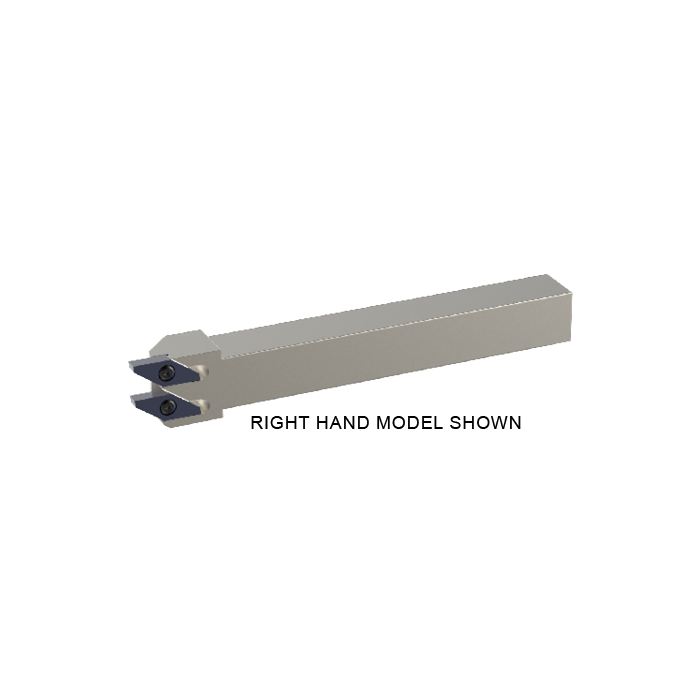

CUT 1600 Twin Holder
multidec® 1600 Series Swiss Tools are designed for micro-turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125 inch diameter. Tough carbide grades combined with a variety of coatings enhance tool life in tough materials typically machined in Swiss-type applications.
Twin Holders mount two inserts at the same time. Various combinations are available and offer the user a lot of flexibility. Twin holders are available with shank cross-sections from 8 to 20 mm in both non-coolant-thru or coolant-thru.
- Non-Coolant-Thru/li>
- Save time by reducing machine downtime due to tool changes on a long production
- Lights-Out Capability - enable full run on second insert
- Multiple Operations from one shank. (i.e. pair a threader, partial profile and grooving insert chip breaker
- Holds 2 CUT1600 Indexable Inserts (match left/right orientation and width of cut to holder)
