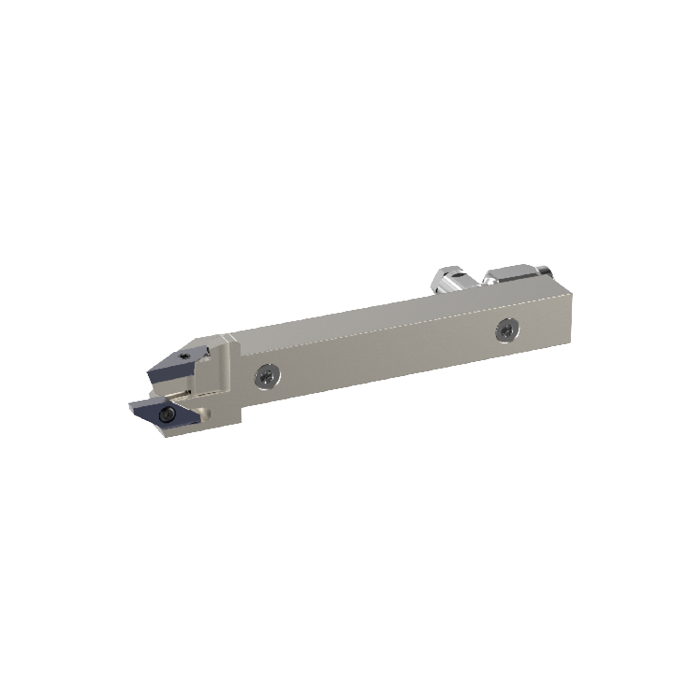

SVJCR/1600R-2020 K11 Twin IC
0
- GSI Part
- 7005-153673
- Holder Type
- Twin
- Holder Style
- SVJC/1600
- Shank Type
- Square
- Repeatability
- < 10µm
- Execution
- Right Hand
- Coolant Capable
- Yes
- Rear Coolant Fitting Part#
- 4005-000104
- Rear Coolant Port Size (d)
- G1/8
- Side Coolant Fitting Part#
- 4005-000111
- Side Coolant Port Size (c)
- M5
- Insert Type
- ISO 35° VC
- Shank Width (h)
- 20 mm
- Shank Height (b)
- 20 mm
- Shank Length (l)
- 125 mm
- (x1)
- 27 mm
- (x2)
- 6.5 mm
- (x3)
- 14 mm
- (z1)
- 24 mm
- Cutting Edge Angle
- 93°
- (dmax)
- 68 mm
Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.
- Fits ISO TOP series inserts
