1600L/1600L-16x125 Twin IC
0
- GSI Part
- 7005-153628
- Holder Type
- Twin
- Operation Type
- All
- Shank Type
- Square
- Repeatability
- < 10µm
- Execution
- Left Hand
- Coolant Capable
- Yes
- Rear Coolant Fitting Part#
- 4005-000104
- Rear Coolant Port Size (d)
- G1/8
- Side Coolant Fitting Part#
- 4005-000111
- Side Coolant Port Size (c)
- M5
- Max Barstock Dia.
- 19 mm
- Insert Type
- CUT 1600
- Shank Width (h)
- 16 mm
- Shank Height (b)
- 16 mm
- Shank Length (l)
- 125 mm
- (x1)
- 24 mm
- (z1)
- 20 mm
- Insert Thickness mm
- 3 mm
- (dmax)
- 19 mm

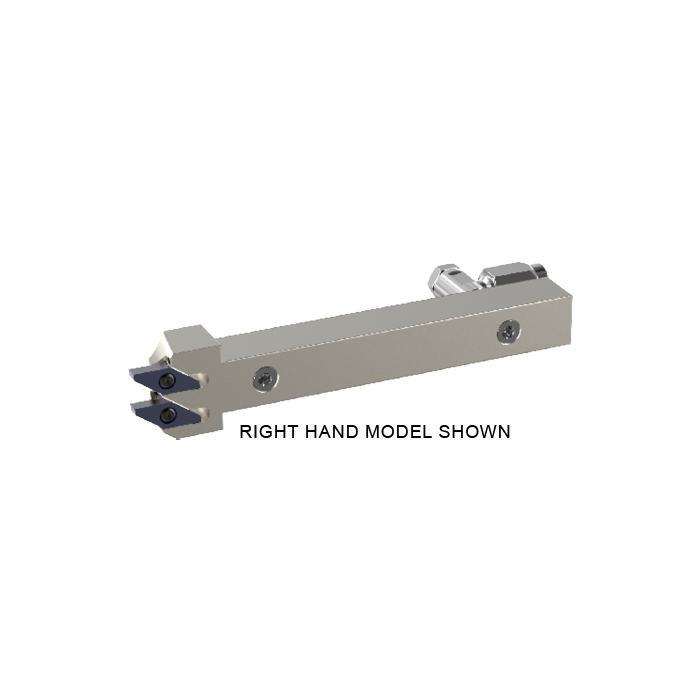

CUT 1600 Twin Holder Coolant-Thru
multidec® 1600 Series Swiss Tools are designed for micro-turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125 inch diameter. Tough carbide grades combined with a variety of coatings enhance tool life in tough materials typically machined in Swiss-type applications.
Twin Holders mount two inserts at the same time. Various combinations are available and offer the user a lot of flexibility. Twin holders are available with shank cross-sections from 8 to 20 mm in both non-coolant-thru or coolant-thru.
- Coolant-Thru
- Save time by reducing machine downtime due to tool changes on a long production
- Lights-Out Capability - enable full run on second insert
- Multiple Operations from one shank. (i.e. pair a threader, partial profile and grooving insert chip breaker
- Holds 2 CUT1600 Indexable Inserts (match left/right orientation and width of cut to holder)
