3002-1.5-10 FLN GS12 UHM20 HPX
0
- GSI Part
- 7005-152807
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- GS12 Chip Breaker
- Execution
- Left Handed Neutral Cut
- Coating
- UHM20 HPX
- Depth Of Cut (c)
- 10 mm
- Width Of Cut (a)
- 1.5 mm
- Nose Radius (r)
- 0.15 mm
- Edge Sharpness
- Sharp

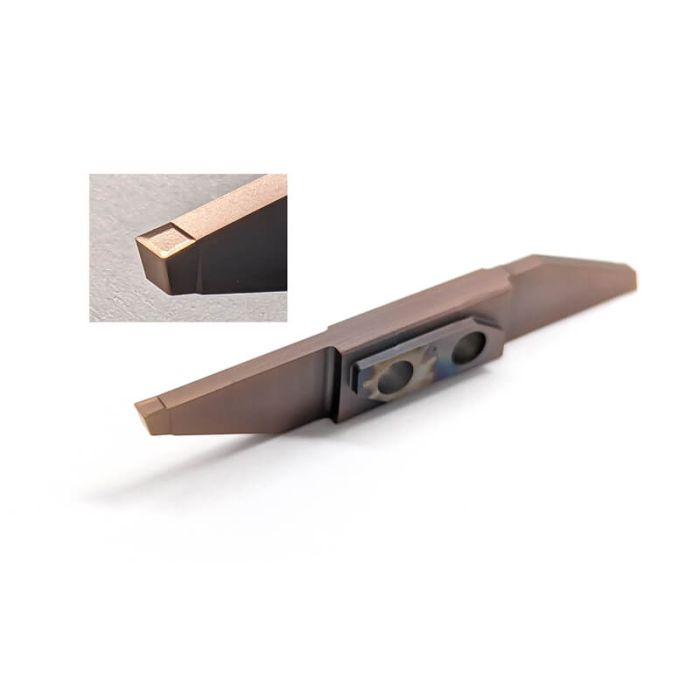

CUT3002 Cut Off Inserts
With Type-GS12 Chip Control
The multidec® CUT 3000 Series is suitable for Swiss type lathes with bar diameters between 10mm and 32mm. This series includes a large selection of cutting geometries with assorted chip breakers, specifically designed for small to medium sized parts manufacturing.
multidec® 3002 GS12 turning inserts provide a neutral chip control geometry delivering wear-resistant sharp cutting edges while enabling better chip control. Ideal for high cutting speeds with supreme performance in carbon steels.
Carbide grades of coated and uncoated ultra-fine grain substrates. View Speeds & Feeds Chart
- Applications: Roughing, Finishing, and Micro Finishing
- Precision Ground
- 0.8 mm - 3 mm insert widths
- Two cutting edges per insert
- NOTE: Not recomended for use in plastics and titanium due to lower tool life in these materials. Check speeds and feeds for proper usage. View Speeds & Feeds Chart
- Inserts fit all Multidec-CUT 1600 and Multidec-CUT 3000 Holders Shop Holders Here
