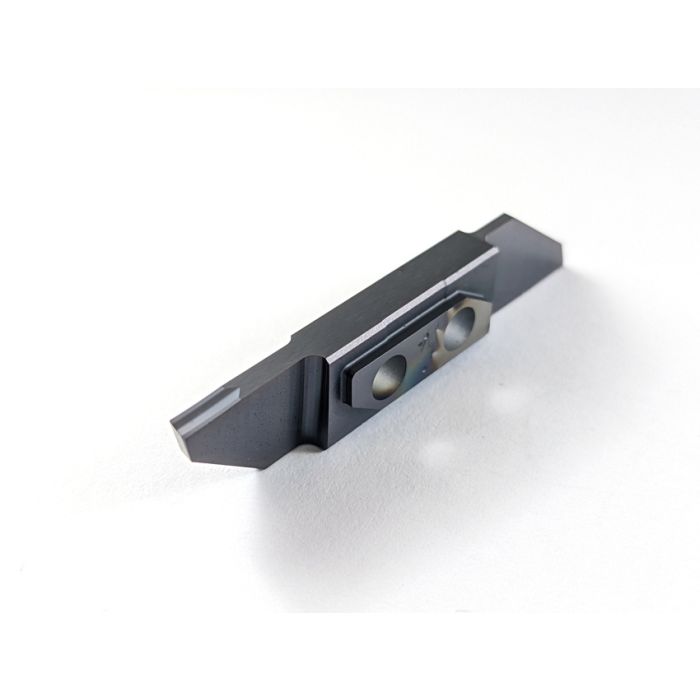

3002-2.0-10 L SC TOP 015 UHM20 HPX
10
- GSI Part
- 7005-148183
- Series
- CUT3000
- Operation/Geometry
- Turn and Cut-Off
- Chip Breaker
- SC Chip Breaker & Top Wiper
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 HPX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 10 mm
- Width Of Cut (a)
- 2 mm
- Relief Angle (β)
- 1.5°
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 15°
- apmax
- 0.45 mm
- Leading Cutting Edge Flat (b)
- 0.3 mm
CUT3002 Cutoff Inserts
With Type-SC Chip Control & TOP Wiper Geometry
multidec® 3002 cutoff inserts are ideal for cutting tough materials such as Titanium, 300 Series Stainless & 17 4 PH. This makes them the choice for the medical & aerospace manufacturing industries.
The TOP trailing edge allows up to 100% higher feed rates than with conventional ISO inserts.
Carbide grades of coated and uncoated ultra-fine grain substrates for use with various materials. (See Diagram)
- UHM20 HPX Coated
- Precision Ground
- 2 mm insert width
- Inverted Cut
- Repeatable within .0004"
- Roughing, Finishing, and Micro Finishing
- Top wiper geometry allows the insert to turn as well as cut-off with improved surface finish.
- Type-SC chip control: Cut-off inserts armed with the type-SC Chip Control are ideal for hard materials.
