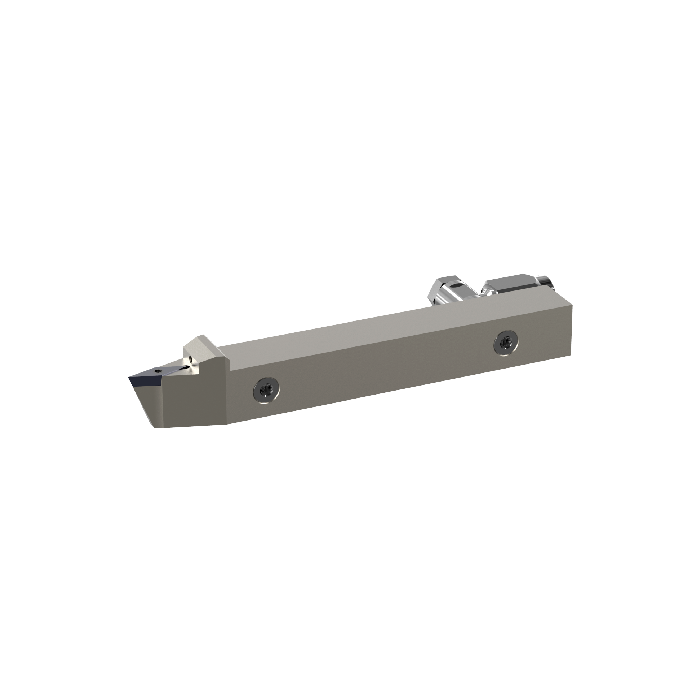

SVVCN 1/2" H11 U IC

Call for availability or request a quote now.

GSI Part: 7005-144936

Holder Type: Standard

Holder Style: SVVCN

Shank Type: Square

Repeatability: < 10µm

Execution: Neutral

Coolant Capable: Yes

Rear Coolant Fitting Part#: 4005-000111

Side Coolant Fitting Part#: 4005-000111

Side Coolant Port Size (c): M5

Insert Type: ISO 35° VC

Shank Width (h): .5in

Shank Height (b): .5in

Shank Length (l): 100 mm

(l1): 100 mm

(x1): 15.9 mm

(z1): 21 mm

Cutting Edge Angle: 72.5°

(f): 6.35 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.

Fits ISO TOP series inserts
