1600-5/8"x70 R IC-S
0
- GSI Part
- 7005-143574
- Holder Type
- SHORT
- Operation Type
- All
- Shank Type
- Square
- Repeatability
- <10µm
- Execution
- Right Hand
- Coolant Capable
- Yes
- Rear Coolant Fitting Part#
- M8x1
- Side Coolant Fitting Part#
- 4005-000111
- Side Coolant Port Size (c)
- M8x1
- Insert Type
- CUT 1600
- Shank Width (h)
- 5/8 in
- Shank Height (b)
- 0.75 in
- Shank Length (l)
- 70 mm
- (x1)
- 19.375 mm
- (z1)
- 17 mm

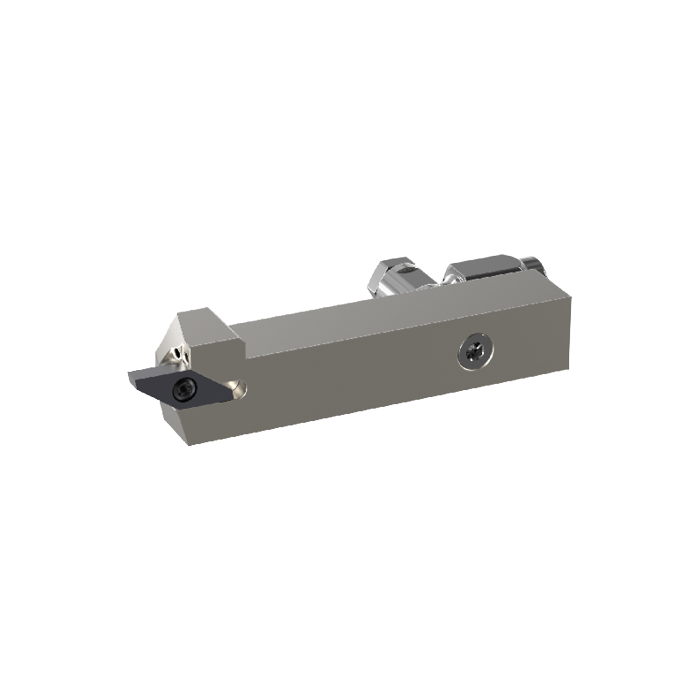

CUT 1600 Short Holder
multidec® SHORT coolant-thru holders enable the use of multidec® turning inserts on commonly available quick change tooling systems.
- All multidec® SHORT holders feature internal cooling
- Three connection options for simple connection to your oil delivery system
- multidec® 1600, 3000, & ISO VC or VP Series inserts may be utilized
- With or without high pressure, the coolant medium always hits the cutting edge precisely
