1603-3.0-4 R SP U55003 UHM30 HX
0
- GSI Part
- 7005-139666
- Series
- CUT1600
- Operation/Geometry
- Front Turn
- Chip Breaker
- SP Chip Breaker
- Execution
- Right Handed Standard Cut
- Coating
- UHM30 HX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 4 mm
- Width Of Cut (a)
- 3 mm
- Relief Angle (β)
- 55°
- Nose Radius (r)
- 0.03 mm
- (s)
- 1 mm
- (γ)
- 12°

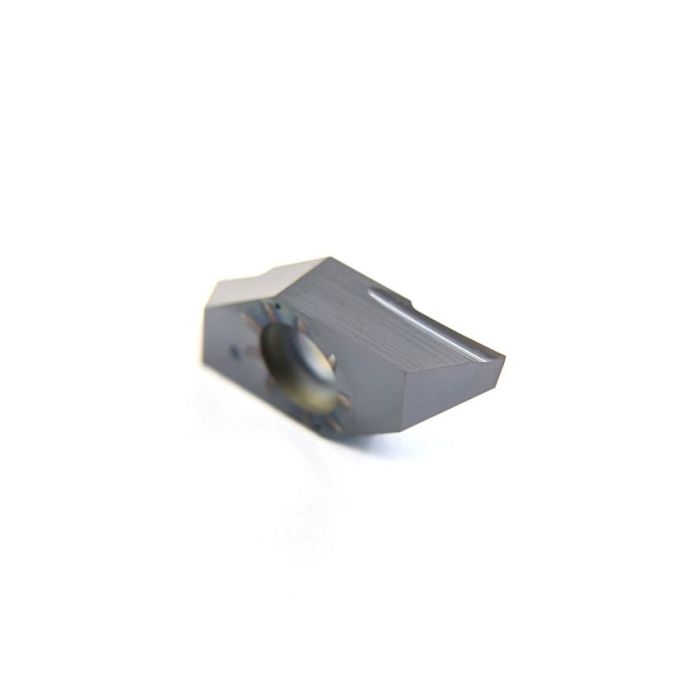

CUT1603 SP Front Turning Inserts
With Type-SP Chip Control
multidec® 1603 turning inserts are designed for front turning operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- HX Coated
- 3mm (.1181in) insert widths
- Two cutting edges per insert
- Indexable Inserts are designed to fit any 1600 tool holder
- Type-SP chip control: Front and back turning inserts with the type-SP Chip Control are ideal for finishing and micro finishing on materials such as aluminum, breaking up chips and preventing stringy chips from forming.
