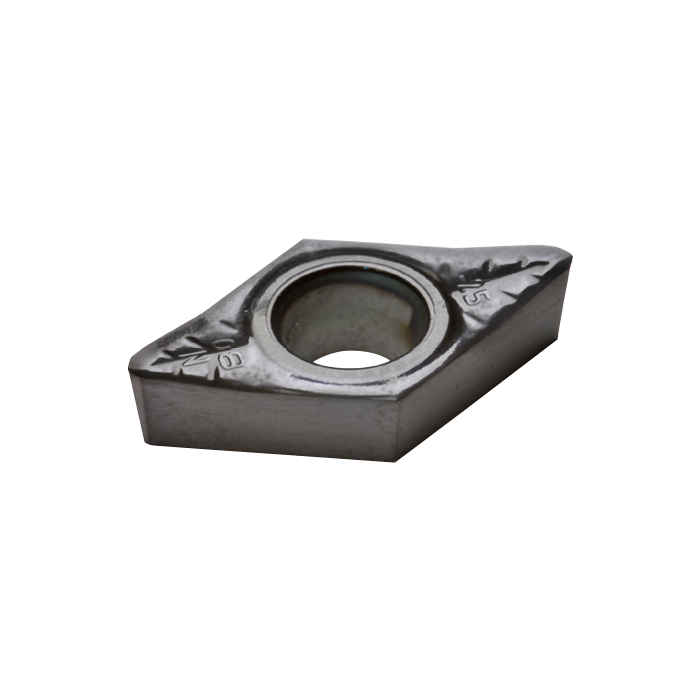

DCGT 11T308 FR TOP5 UHM10 HX
0
This item is sold in packs of 5
- GSI Part
- 7005-126905
- Series
- ISO 55° DC
- Operation/Geometry
- DCGT
- Chip Breaker
- TOP5 Wiper
- Execution
- Right Handed Standard Cut
- Coating
- UHM10 HX
- Insert Material
- Carbide
- Nose Radius (r)
- 0.8 mm
- Rake Type
- Polished Rake
- Edge Sharpness
- Sharp Cutting Edge
- Repeatability
- < 20µm
- (l)
- 11.6 mm
- (l1)
- 7.2 mm
- (C)
- < 0.002
The Multidec-ISO series of Swiss-turning tools is a robust solution for small parts turning. A wide variety of carbide grades, coatings, as well as chip breaker styles and holder designs are available creating a broad selection of solutions for precision turning. Inserts are available with 35°, 55° & 80° angles.
