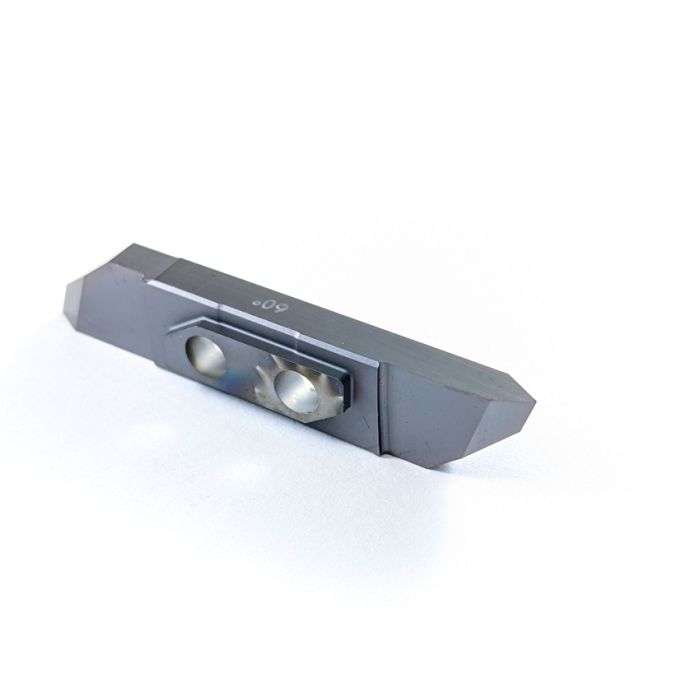

3006-3-10-60 R UHM30 HX
5
- GSI Part
- 7005-126782
- Series
- CUT3000
- Operation/Geometry
- Threading
- Thread Profile
- Partial Profile
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM30 HX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 10 mm
- Width Of Cut (a)
- 3 mm
- Clearance (α)
- 60°
- (P) Pitch mm
- 0.25-2
- (e)
- 0.035 mm
"
multidec® world class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
multidec® Cut tools feature special cutting geometries specifically designed for cutting tough materials such as Titanium, 300 Series Stainless & 17 4 PH. This makes them the tooling of choice for the medical & aerospace manufacturing industries.
- Repeatable within .0004""""
- For all turning application processes
- All insert styles fit the same holder
- Holder design absorbs cutting forces
- Ideal for tough applications
