WHC 442 050 080 UHM20
0
- GSI Part
- 7005-114168
- (a)
- 0.03
- Coating
- UHM20
- Neck Diam. (d2)
- 2.94
- Tolerance (d3)
- 0/+0.07
- Minimum Hole Diameter (d3)
- 4.2
- ISODIN13
- M5
- Neck Length (l1)
- 9.8
- Number Of Teeth
- 1
- Pitch (p)
- 0.8
- Standard
- Metric
- Type
- Short Neck
- (α)
- 60°
"

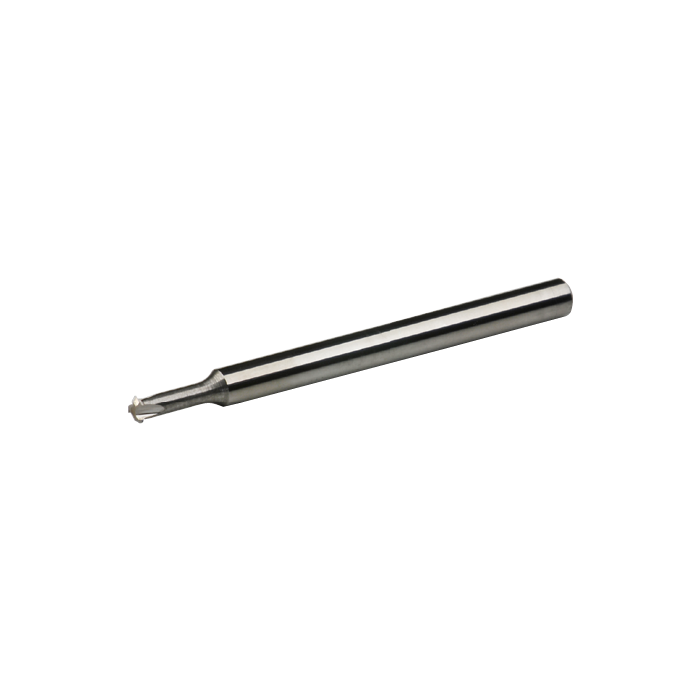

multidec® thread mill tools are a versatile way for creating metric or UNC/UNF spec threaded forms. Since thread milling uses helical- Interpolation tool paths, the same thread mill can be used to create left or right handed threads. multidec® thread mill tools come standard with 3 flutes and have the options for 1 or 2 teeth with long or short shanks. Strengthened shank mill tools are available for increased rigidity and decreased deflection.
"""
