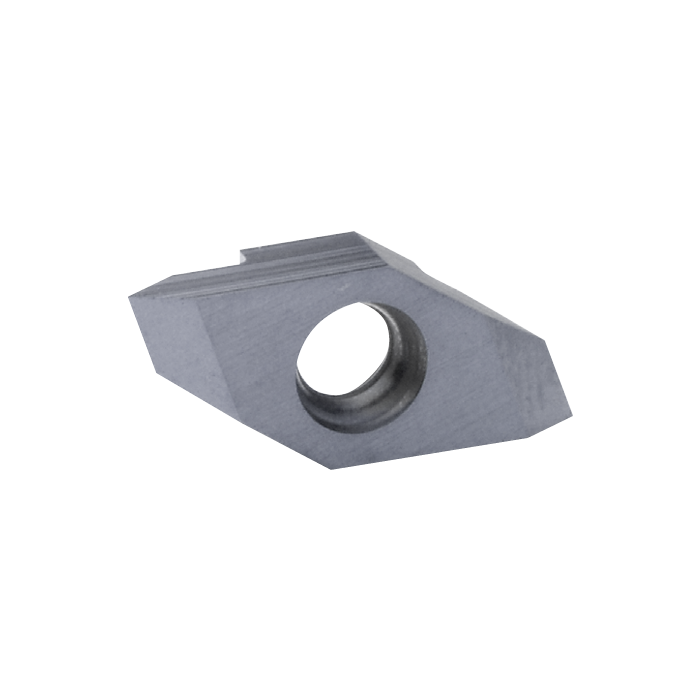

1612-2-4-60 R UHM30 HX: Utilis Chamfering Insert 2mm wide 60 degree RH with HX Coating
9
- GSI Part
- 7005-113621
- Series
- CUT1600
- Operation/Geometry
- Chamfering
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM30 HX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 4 mm
- Width Of Cut (a)
- 2 mm
- Relief Angle (β)
- 60°
- Max Grooving Depth (d)
- 4 mm
- Clearance (α)
- 60°
- (e)
- 35 mm
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough UHM30 grade carbide combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
Highly repeatable cutting edge
.05mm to 2.75mm (.0019" - .1082") insert widths
Micro grooving, front turning, back turning, micro threading, & cut off operations
