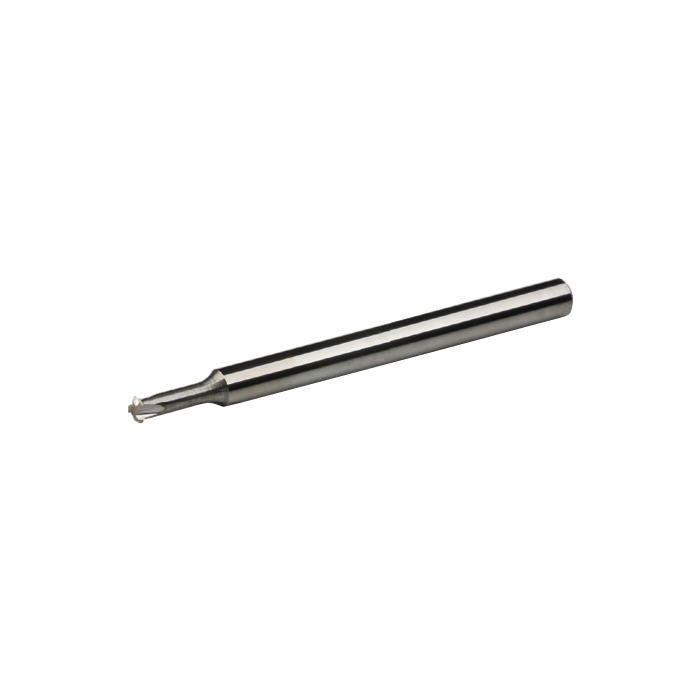

WHC 338-03-56 UNF UHM20 HX
0
- GSI Part
- 7005-113384
- ANSI B1.1
- 3-56
- Coating
- UHM20HX
- Neck Diam. (d2)
- 1.32
- Tolerance (d3)
- 0/+0.05
- Minimum Hole Diameter (d3)
- 2.15
- Neck Length (l1)
- 5.2
- Number Of Teeth
- 1
- Pitch (p)
- 0.453
- Standard
- UNF
- Type
- Short Neck
- (α)
- 60°
"
multidec® thread mill tools are a versatile way for creating metric or UNC/UNF spec threaded forms. Since thread milling uses helical- Interpolation tool paths, the same thread mill can be used to create left or right handed threads. multidec® thread mill tools come standard with 3 flutes and have the options for 1 or 2 teeth with long or short shanks. Strengthened shank mill tools are available for increased rigidity and decreased deflection.
"""
