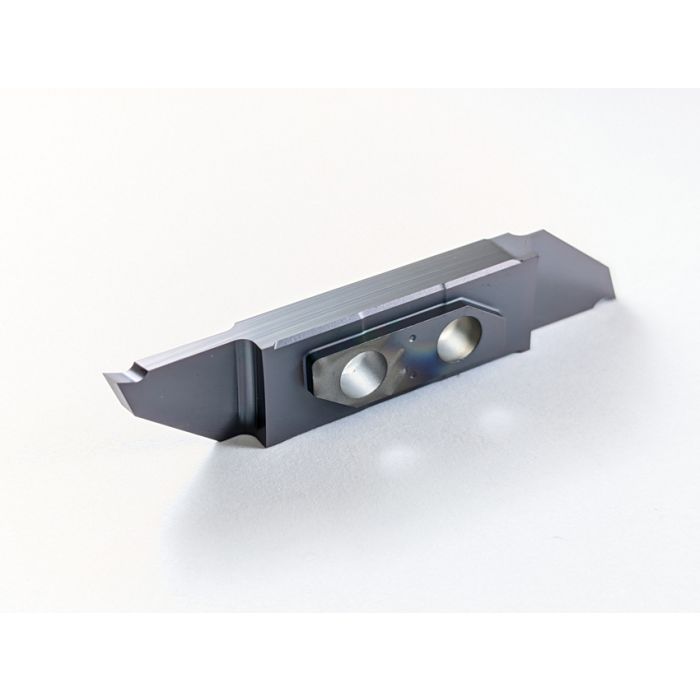

3002-2.5-13 LV SPT06 UHM20 HPX
20
- GSI Part
- 7005-112872
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- SPT Chip Breaker
- Execution
- Left Handed Inverted Cut
- Coating
- UHM20 HPX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 13 mm
- Width Of Cut (a)
- 2.5 mm
- Relief Angle (β)
- 6°
- Nose Radius (r)
- 0.05 mm
- Clearance (α)
- 15°
- (s)
- 2 mm
multidec® world class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
multidec® Cut tools feature special cutting geometries specifically designed for cutting tough materials such as Titanium, 300 Series Stainless & 17 4 PH. This makes them the tooling of choice for the medical & aerospace manufacturing industries.
- Repeatable within .0004"
- For all turning application processes
- All insert styles fit the same holder
- Holder design absorbs cutting forces
- Ideal for tough applications
