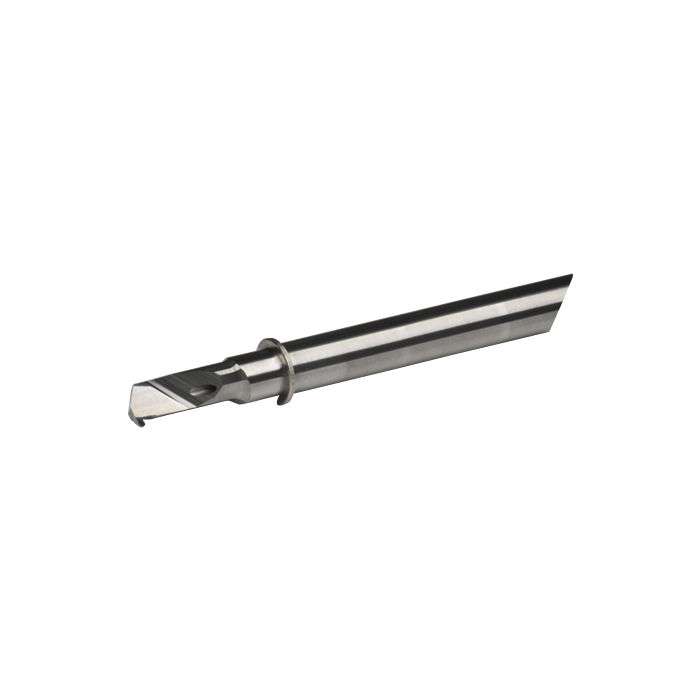

SDR 656 592 R UHM20
0
- GSI Part
- 7005-112588
- Description - Product Slider
- ‣ Complete Boring and ID working system for CNC Swiss Machines
‣ Precise location easily attained with specialized tool holders
‣ Ideal for Precision Micro Boring Application
- Series
- SDR
- Operation
- Radius Grooving
- Minimum Hole Ø
- 5.92
- Width Of Cut
- 5.53
- Max Depth Of Cut (l1)
- 24
- Shank Size
- 6
- Coating
- UHM20
- Execution
- R
- Tool Nose Radius
- 0.35
- OAL (l0)
- 56
- l2
- 0.7
- X-offset
- 2.96
- t
- 0.7
- h
- 1.05
"
UTILIS Swiss Type Boring tools are designed by Swiss engineers who understand the requirements and demands of today's Swiss Turning Industry. The tooling that they have engineered excels in the areas demanded by the Swiss machinist to produce complete, accurate, high quality precision parts. Extreme rigidity, tool life, repeatability & ease of setup are just some of the qualities that UTILIS Swiss Turning Tools feature.
"
