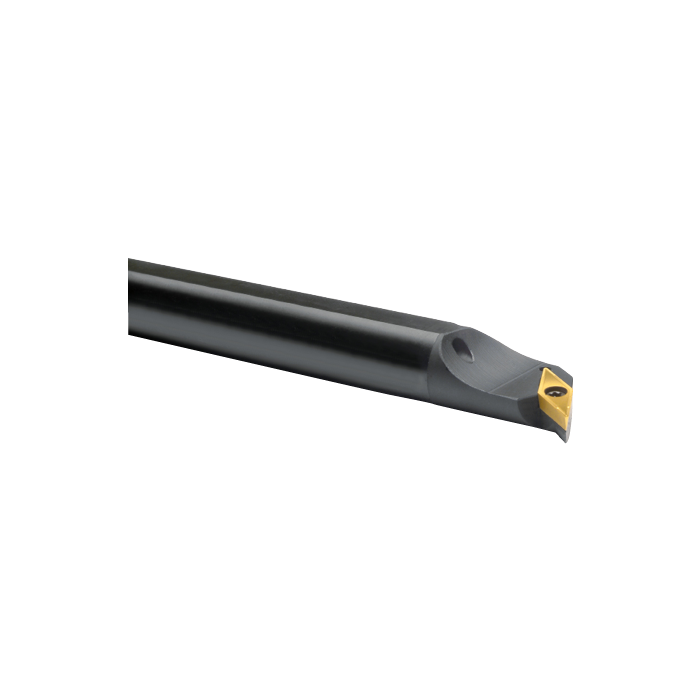

A20 Q SVQCL 11
0
- GSI Part
- 7005-045276
- Holder Type
- Standard
- Holder Style
- SVQC
- Shank Type
- Round
- Repeatability
- < 20µm
- Execution
- Left Hand
- Coolant Capable
- Yes
- Insert Type
- ISO 35° VC
- Shank Width (h)
- 18.5 mm
- Shank Height (b)
- 20 mm
- Shank Length (l)
- 180 mm
- (l1)
- 180 mm
- (l2)
- 32 mm
- Cutting Edge Angle
- 93°
- (Dmin)
- 25 mm
- (f)
- 13 mm
Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.
- Fits ISO VC 35° inserts
- Coolant-thru
