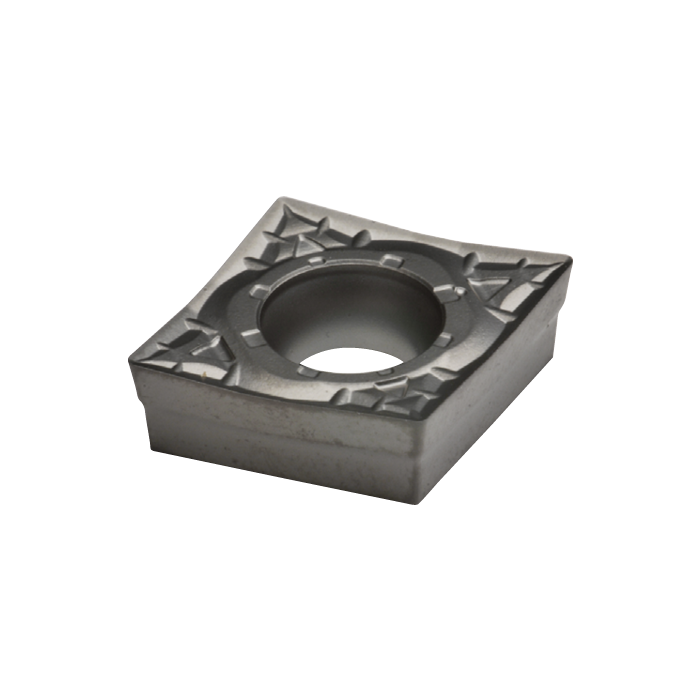

CCXT 09T304 EN PA9 UHM10 TX+
0
- GSI Part
- 7005-044783
- Series
- ISO 80° CC
- Operation/Geometry
- CCXT
- Chip Breaker
- PA9
- Execution
- Neutral Cut
- Coating
- UHM10 TX+
- Insert Material
- Carbide
- Nose Radius (r)
- 6 mm
- Rake Type
- Honed Cutting Edge
- Edge Sharpness
- Honed Cutting Edge
- Repeatability
- < 50µm
- (l)
- 9.7 mm
- (l1)
- 6 mm
The Multidec-ISO series of Swiss-turning tools is a robust solution for small parts turning. A wide variety of carbide grades, coatings, as well as chip breaker styles and holder designs are available creating a broad selection of solutions for precision turning. Inserts are available with 35°, 55° & 80° angles.
