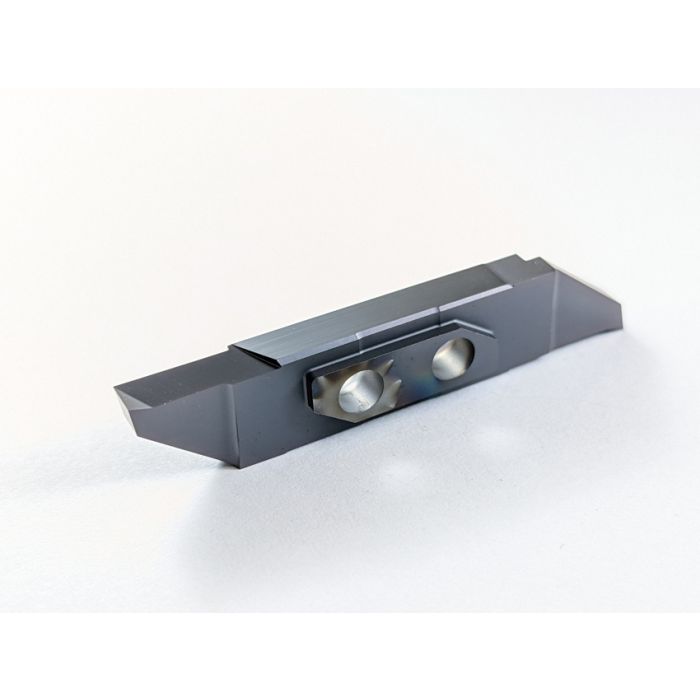

3005-2.0-8 L CP UHM20 TX+
0
- GSI Part
- 7005-044476
- Series
- CUT3000
- Operation/Geometry
- Groove and Turn
- Chip Breaker
- CP Chip Breaker
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 TX+
- Depth Of Cut (c)
- 8 mm
- Width Of Cut (a)
- 2 mm
- Relief Angle (β)
- 10°
- Max Grooving Depth (d)
- 5 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
Type-CP Chip Breaker
For Front-Turning, Back-Turning, & Grooving Inserts
When creating deep features during front turning, back turning, or grooving, the type-CP chip breaker is vital for chip removal. The sharp articulated geometry will peel chips away and keep features clear of material during finishing and micro finishing operations.
