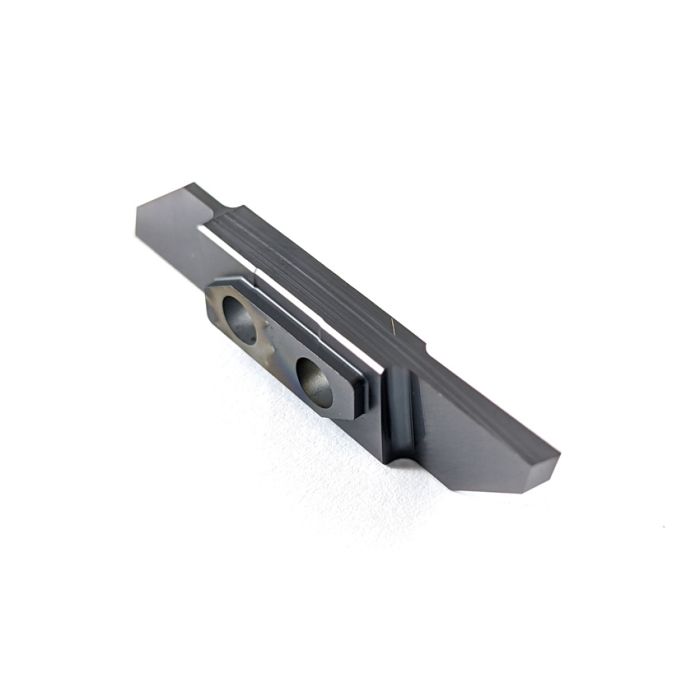

3002-2.0-10 RV TOP 015 UHM20 TX+
0
- GSI Part
- 7005-044405
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- Top Wiper
- Execution
- Right Handed Inverted Cut
- Coating
- UHM20 TX+
- Depth Of Cut (c)
- 10 mm
- Width Of Cut (a)
- 2 mm
- Relief Angle (β)
- 1.5°
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 15°
- apmax
- 0.45 mm
- Leading Cutting Edge Flat (b)
- 0.3 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
