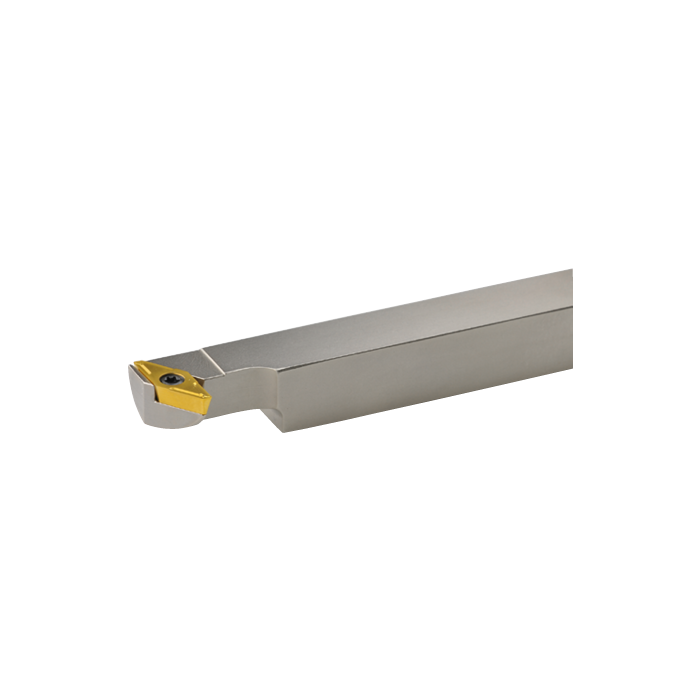

SVQPR 1616 XK10

Call for availability or request a quote now.

GSI Part: 7005-044064

Holder Type: Standard

Holder Style: SVQP

Shank Type: Square

Repeatability: < 20µm

Execution: Right Hand

Coolant Capable: No

Insert Type: ISO 35° VP TOP

Shank Width (h): 16 mm

Shank Height (b): 16 mm

Shank Length (l): 125 mm

(l1): 125 mm

(l2): 12 mm

(l3): 7.6 mm

Cutting Edge Angle: 92°

(Dmin): 16 mm

(f): 15.7 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.

Fits ISO TOP series inserts
