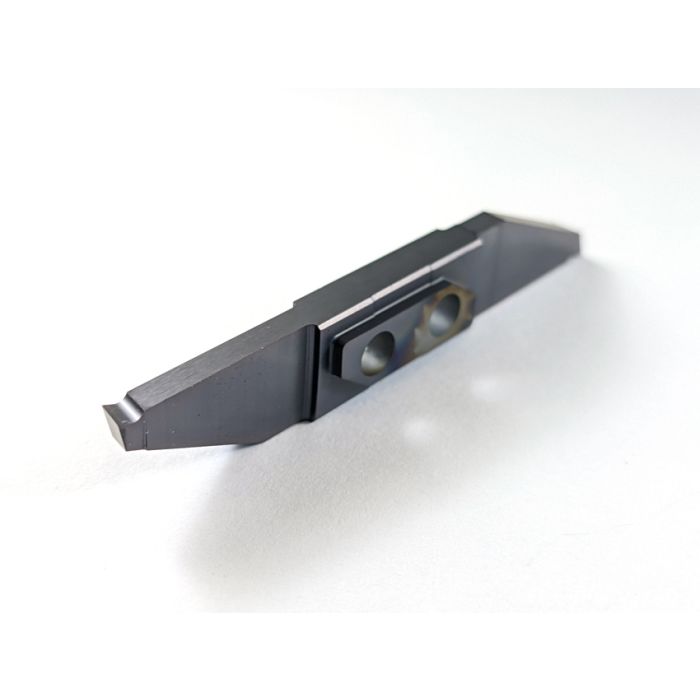

3002-1.0-13 L SPT UHM20
0
This item is sold in packs of 5
- GSI Part
- 7005-042440
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- SPT Chip Breaker
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 Uncoated
- Insert Material
- Carbide
- Width Of Cut (a)
- 1 mm
- Relief Angle (β)
- 20 degree rake
- Nose Radius (r)
- 0
- Clearance (α)
- 15 Degrees
- Repeatability
- <20µm
- (s)
- 2 mm
- (c1)
- 13 mm
CUT 3002 Cut-Off Inserts
With Type-SPT Chip Control
The multidec® CUT 3000 Series is suitable for Swiss type lathes for bar diameters between 10mm and 32mm. This series includes a large selection of cutting geometries with assorted chip breakers, specifically designed for small to medium sized parts manufacturing.
CUT 3002 turning inserts with type-SPT chip breakers feature a positive rake intended for use in soft and stringy materials. SPT chip breaker comes in three different angles. SPT06: 6 degree rake, SPT12: 12 degree rake, SPT: 20 degree rake.
Carbide grades of coated and uncoated ultra-fine grain substrates. Check Speeds and Feeds Chart for proper useage.
- Roughing, Finishing, and Micro Finishing
- 0.8 mm - 3 mm insert widths
- Repeatable within .0004"
- Two cutting edges per insert
- Inserts fit all Multidec-CUT 1600 and Multidec-CUT 3000 Holders Shop Holders Here
