1606-G 14-55 VP L UHM20
0
- GSI Part
- 7005-041221
- Series
- CUT1606
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Thread Standard
- Pipe Thread
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 Uncoated
- Depth Of Cut (c)
- 3.6 mm
- Clearance (α)
- 55°
- (P) Pitch Threads/inch
- 14 in
- (P) Pitch mm
- 1.814 mm
- ANSI B1.1
- 1/2-7/8
- Repeatability
- <20µm
- (t)
- Inch
- (a1)
- 1 mm
- (a2)
- 1 mm
- Leading Cutting Edge Flat (b)
- 4 mm
- hmin
- 1.162 mm

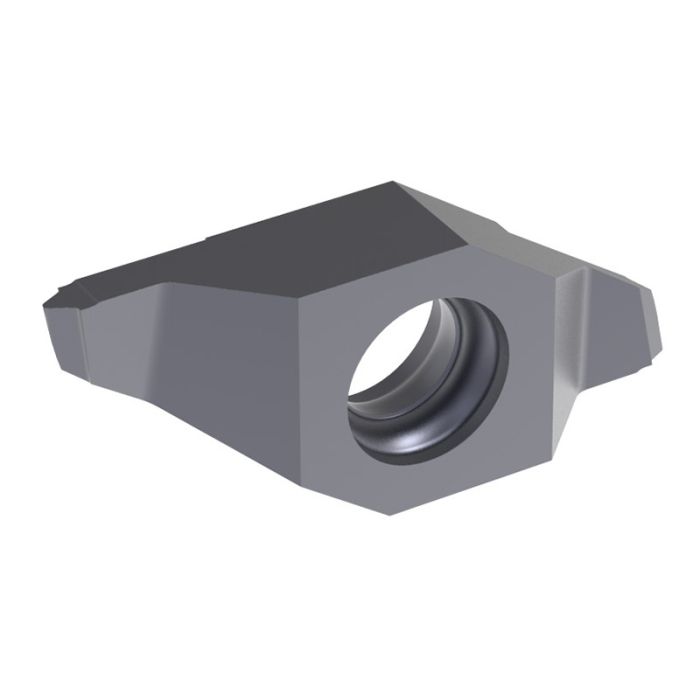

CUT1606 G Full Profile Threading Inserts - Pipe Thread
multidec® 1606 turning inserts are designed for threading operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Full profile threading geometry
- Featuring ANSI B1.1 1/2- 7/8
- Pipe thread
- Uncoated
