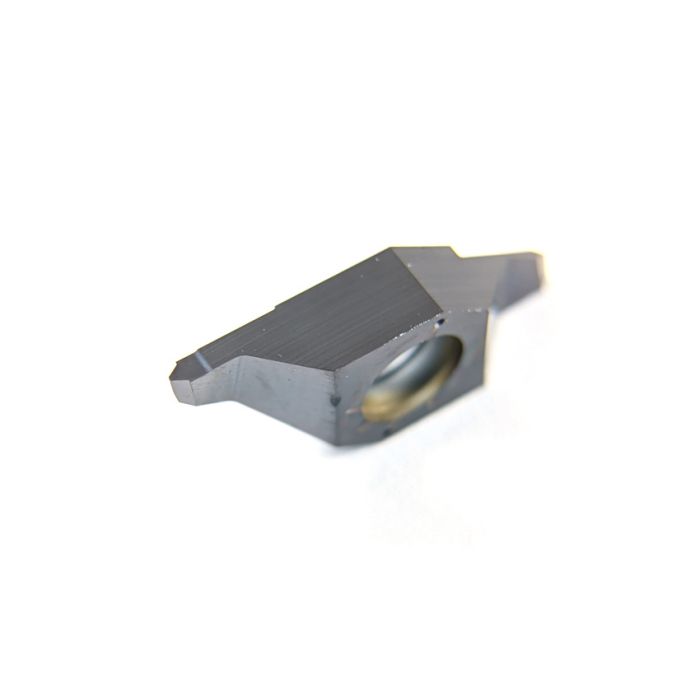

1606-32 UN 60 VP L UHM20
0
- GSI Part
- 7005-041185
- Series
- CUT1606
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 Uncoated
- Depth Of Cut (c)
- 2.2 mm
- Clearance (α)
- 60°
- (P) Pitch Threads/inch
- 28 in
- (P) Pitch mm
- 0.907 mm
- ANSI B1.1
- UNC, UNF, UNS, UNR
- Repeatability
- <10µm
- (t)
- Inch
- (a1)
- 0.5 mm
- (a2)
- 0.5 mm
- Leading Cutting Edge Flat (b)
- 4 mm
- hmin
- 0.556 mm
CUT1606 UN Full Profile Threading Inserts - Inch Standard
multidec® 1606 turning inserts are designed for threading operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Full profile threading geometry
- Featuring 20-80 TPI
- Inch standard
