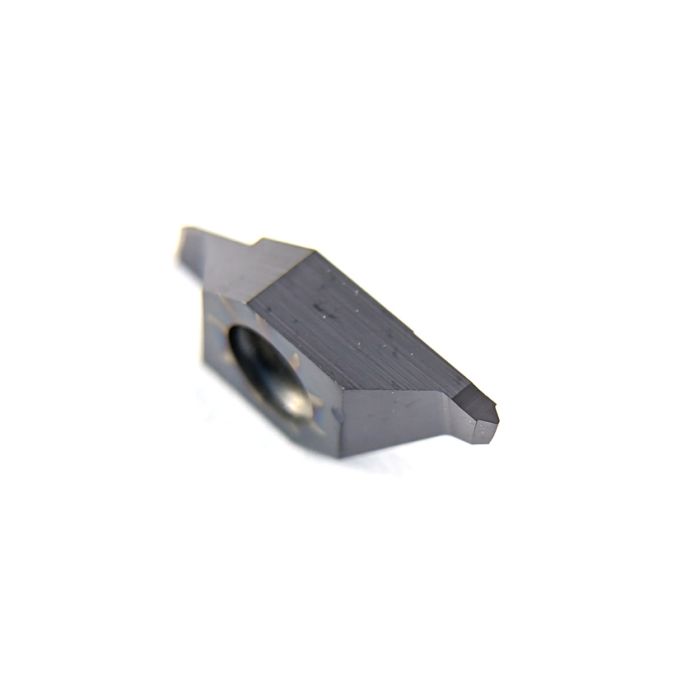

1606-0.08-60 VP R UHM20 TX+
0
- GSI Part
- 7005-040959
- Series
- CUT1606
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 TX+ Coated
- Depth Of Cut (c)
- 0 mm
- Clearance (α)
- 60°
- (P) Pitch mm
- 0.08 mm
- NIHS0602
- S 0.3
- Repeatability
- <10µm
- (t)
- Metric
- (a1)
- 0.05 mm
- (a2)
- 0.04 mm
- Leading Cutting Edge Flat (b)
- 4 mm
- hmin
- 0.045 mm
CUT1606 Full Profile Threading Inserts - Metric Standard
multidec® 1606 turning inserts are designed for threading operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Full profile threading geometry
- S0.2 - S0.9, M1 - M9 Thread Forms Available (See attribute of this SKU# for specific thread size)
- Metric standard
