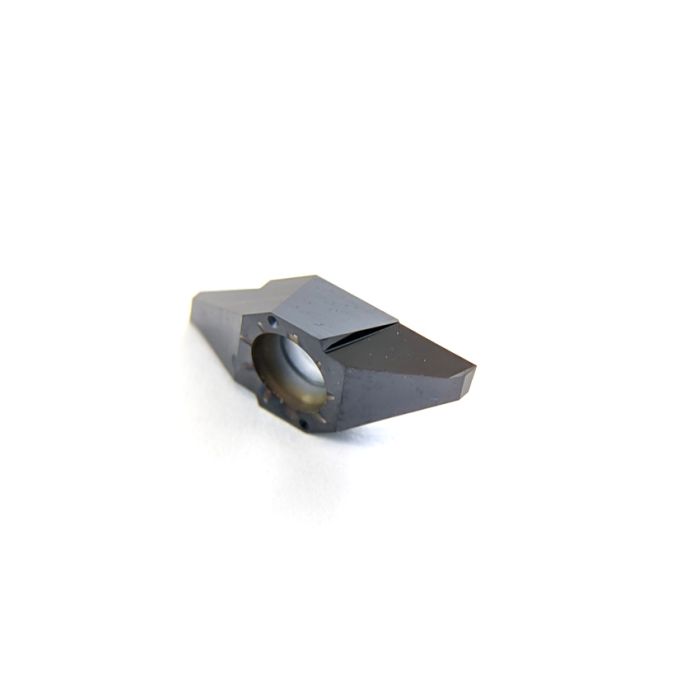

1603-3.0-3.5 R CP TOP 003 UHM20 TX+
0
- GSI Part
- 7005-040896
- Series
- CUT1600
- Operation/Geometry
- Front Turn
- Chip Breaker
- CP Chip Breaker & Top Wiper
- Execution
- Right Handed Standard Cut
- Coating
- UHM20 TX+
- Depth Of Cut (c)
- 4 mm
- Width Of Cut (a)
- 0.8 mm
- Nose Radius (r)
- 0.03 mm
- Clearance (α)
- 1°
- (γ)
- 2°
- (δ)
- 25°
- Leading Cutting Edge Flat (b)
- 0.2 mm
CUT1603 CP Front Turning Inserts
With Type-CP Chip Control & TOP Wiper Geometry
multidec® 1603 turning inserts are designed for front turning operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Front turning operations
- .8mm (.0315in) insert widths
- TOP wiper geometry - Improved surface finish
- Type-CP chip control: Front and back turning inserts with the type-CP Chip Control are ideal for finishing and micro finishing on materials such as aluminum, breaking up chips and preventing stringy chips from forming.
