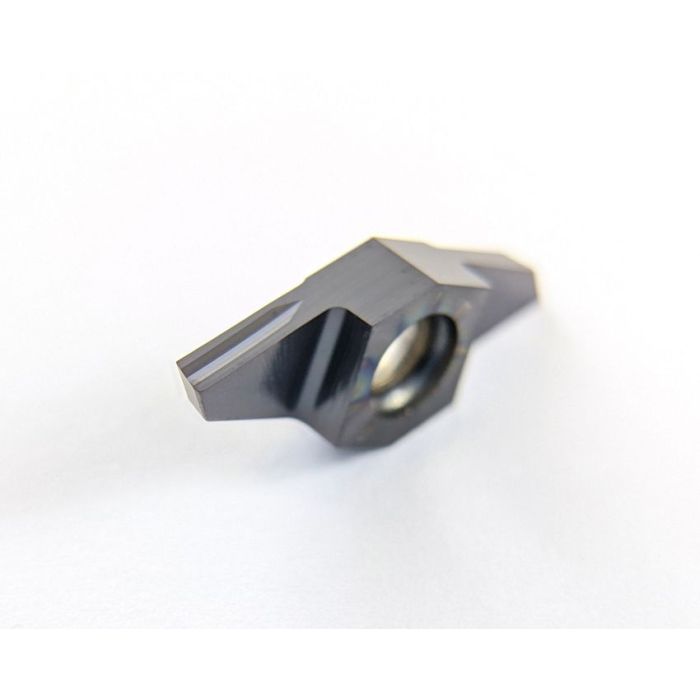

1602-1.5-5 L SC TOP 008 UHM20 TX+
0
- GSI Part
- 7005-040812
- Series
- CUT1600
- Operation/Geometry
- Cut-Off
- Chip Breaker
- SC Chip Breaker & Top Wiper
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 TX+
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 1.5 mm
- Relief Angle (β)
- 1.5°
- Nose Radius (r)
- 0.08 mm
- Clearance (α)
- 15°
- apmax
- 0.3 mm
- Leading Cutting Edge Flat (b)
- 0.3 mm
CUT1602 SC TOP Cut-Off and Turn Inserts
With Type-SC Chip Control & TOP Wiper Geometry
multidec® 1602 SC TOP turning inserts are designed for cut-off and turn operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Cut-off and turn operations
- 1.5mm (.0591in) insert widths
- TOP wiper geometry - Improved surface finish
- Type-SC chip control: Cut-off inserts armed with the type-SC Chip Control are ideal for hard materials. This Chip Control is quite universal, used in roughing, finishing, and micro finishing. The TOP wiper geometry enables the cut-off insert to turn with improved surface finish due.
