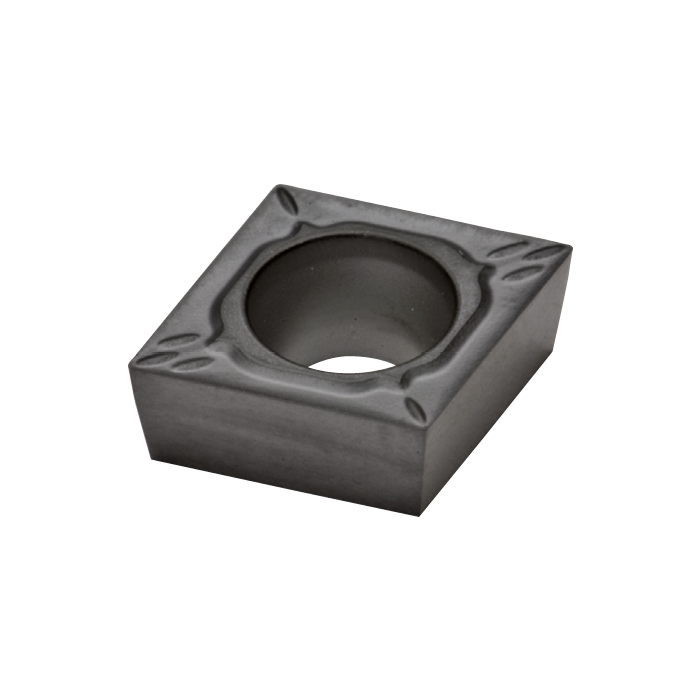

CCGT 060202 EN PF UCM10 HX:
0
This item is sold in packs of 5
- GSI Part
- 7005-013271
- Series
- ISO 80° CC
- Operation/Geometry
- CCGT
- Chip Breaker
- PF
- Execution
- Neutral Cut
- Coating
- UCM10 HX
- Insert Material
- Cerment
- Nose Radius (r)
- 0.2 mm
- Rake Type
- Honed Cutting Edge
- Edge Sharpness
- Honed Cutting Edge
- Repeatability
- < 20µm
- (l)
- 6.4 mm
- (l1)
- 1.5 mm
The Multidec-ISO series of Swiss-turning tools is a robust solution for small parts turning. A wide variety of carbide grades, coatings, as well as chip breaker styles and holder designs are available creating a broad selection of solutions for precision turning. Inserts are available with 35°, 55° & 80° angles.
