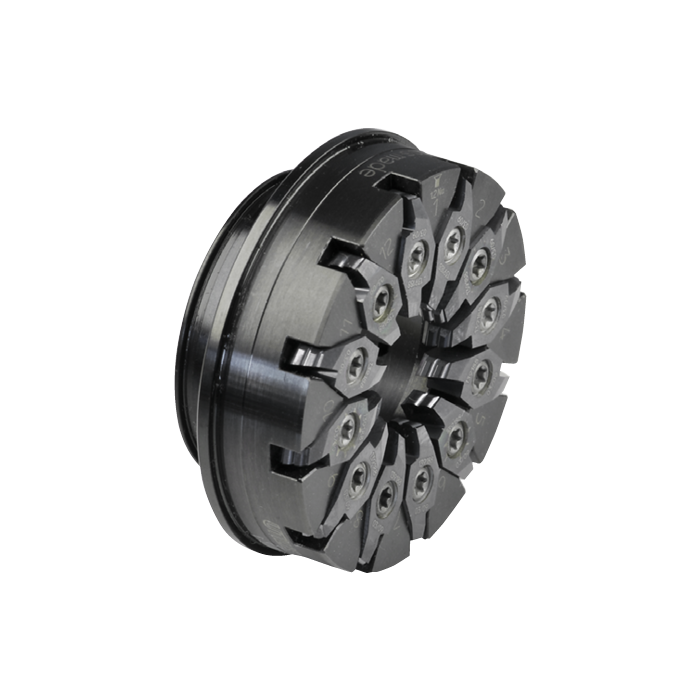

MWT12 168 3347 145 09: Whirling Ring Assembly

GSI Part: 6510-149537

Ring Type: Thread Whirling Assembly Type B

Flight Circle (DF): 12

Number of Insert Pockets (z): 12

(DA): 33

(DK): 47

(LT): 14.5

Machine Make / Spindle Manuf. / Spindle Model: Citizen / Citizen / BTW-1000, Citizen / Citizen / BTW-2000, Citizen / Citizen / BTW-3000, Citizen / Citizen / BTW-3100, Citizen / Citizen / BTW-4000, Citizen / Citizen / BTW-5000, Citizen / Citizen / BTW-6000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.

Increased Number Of Available Cutters
Increased Speeds & Feeds
Decreased Chip-Load per Insert
Significant Tool Life Increase

TYPE B- Mono System

Compact Single Component System
±0.005mm Guaranteed Concentricity
