MWT12 164 4046 130 09: Whirl Ring Asm, 09 Pocket For PCM

GSI Part: 6510-000116

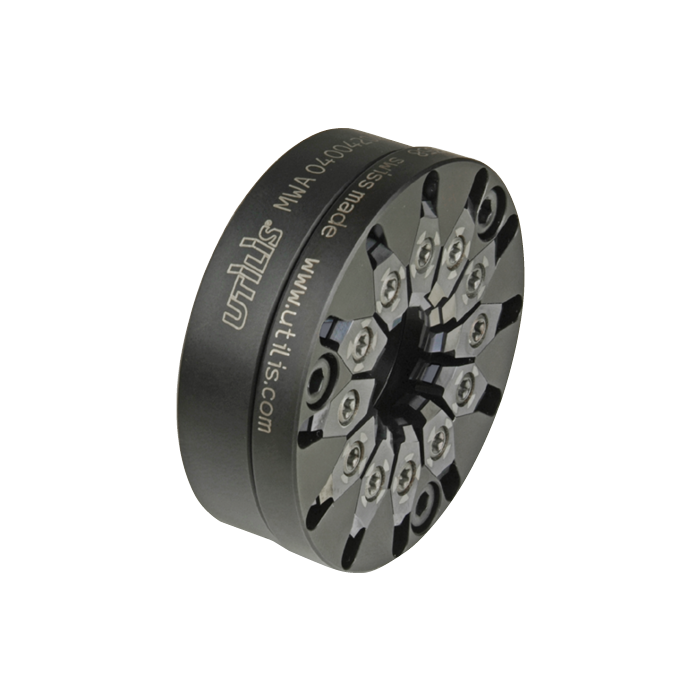

Ring Type: Thread Whirling Assembly Type A

Flight Circle (DF): 12

Number of Insert Pockets (z): 9

(DA): 40

(DK): 46

Ring OD (DM): 46

(LA): 5

(LT): 13

Machine Make / Spindle Manuf. / Spindle Model: Citizen / Madaula / CZ.035.M12, Citizen / Madaula / CZ.035.M16, Citizen / Madaula / CZ.035.M20, Citizen / Madaula / CZ.035.M32T, Hanwha / Madaula / P.035.00063, Star / Madaula / 1110.00055

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Thread whirling is a fast & accurate method of producing long threaded parts on a Swiss-type machine. By employing more cutting teeth, the GenSwiss/UTILIS whirling system greatly enhances productivity by allowing increased speeds and feeds while maintaining rigid finish qualities required by the medical implant industry.

Increased Number Of Available Cutters
Increased Speeds & Feeds
Decreased Chip-Load per Insert
Significant Tool Life Increase

TYPE A- Modular System

Reduces Setup Time
Interchangeable 2-Part System
±0.005mm Guaranteed Concentricity
