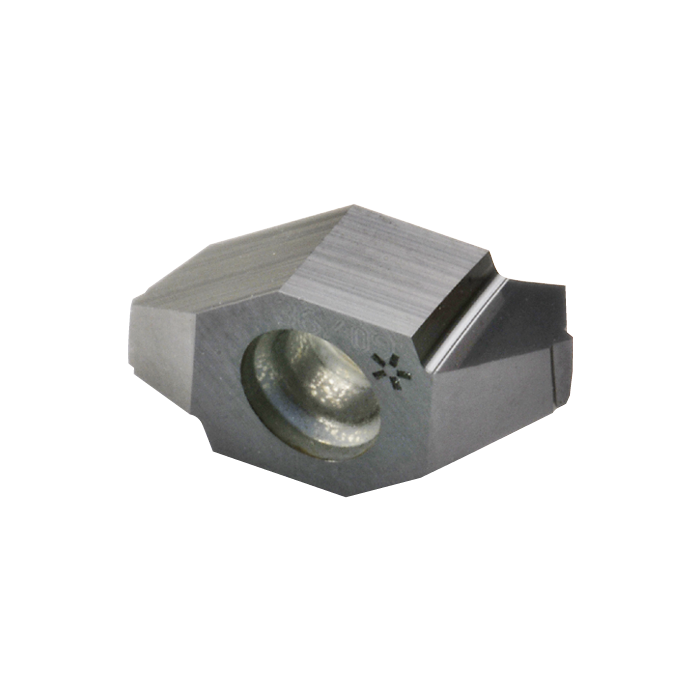

MWI12 164 1/4-28UNF VP UHM30 HX
0
- GSI Part
- 6505-119659
- Form Type
- UNF
- ANSI B1.1
- 1/4 - 28
- Coating
- UHM30HX
- (Material)
- Carbide
- Max Barstock Dia.
- 14
- Flight Circle (DF)
- 12
- (r)
- 0.121
- Pitch (p)
- 0.907
- (DK)
- 5.217
- (d)
- 6.35
- (ap)
- 4
"
With the multidec® whirling system, special forms can easily be produced in a rapid and accurate fashion.
- Double edge indexable inserts provide excellent tool life
- Inserts repeat within .0004in
