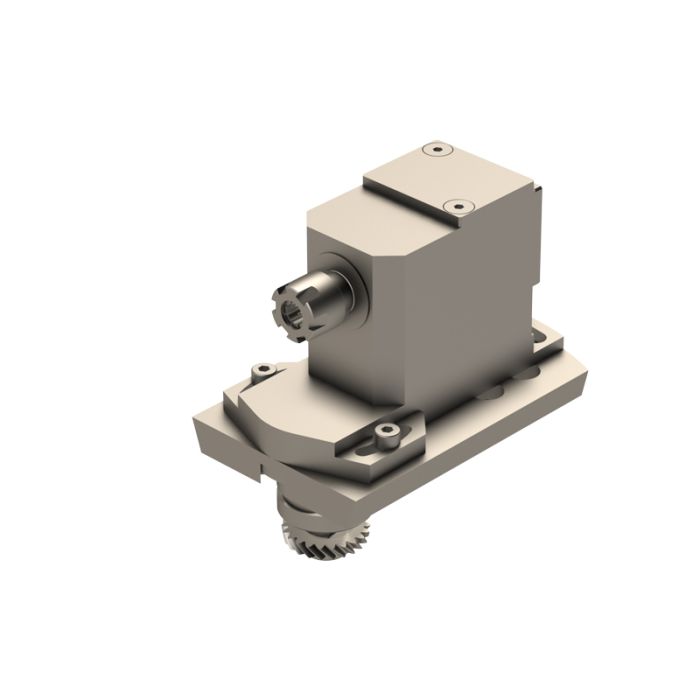

CIT-MSF-130: Polygon Spdl M12/16, Ø13mm Arbor, i/o 1:1, For Turret, Adj ±20°, Cutter Ø59mm max
0
- GSI Part
- 5505-000624
- Machine Make
- Citizen
- Machine Model
- M2-12, M3-12, M2-16, M3-16, M4-16
- Work Location
- Turret
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø13mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±20°
- Max Tool Diameter
- 59mm
This is a specialty polygon tool for use on Citizen M16 machines. It has a ø13mm shank, maximum mill capacity of ø59mm, and has an angular adjustability of ±20°.
