CIT-LSW-420: Whirler M4-16, i/o 1:1 Adj. ± 16°, Position T06-09, No Ring Included, Req 2 Positions
0
- GSI Part
- 5505-000593
- Machine Make
- Citizen
- Machine Model
- M4-32
- Work Location
- Gang Slide
- Operation
- Thread Whirling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- PCM Ring
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±16°
- Notes
- Internal cooling requires coolant kit PCM art# 876-635-80
- Cooling
- Internal Cooling

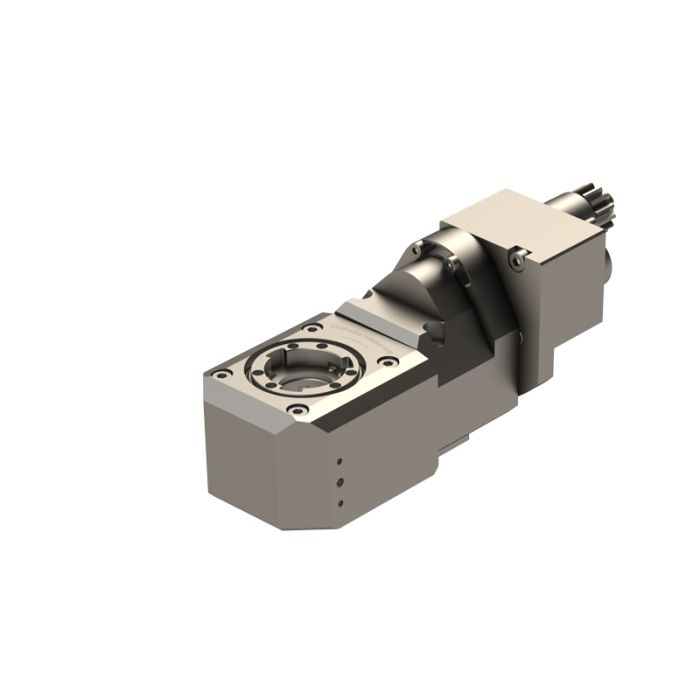

This is a whirling tool holder that mounts on the upper gang tool post of Citizen M16 machines. This holder has an angular adjustment of ±16° for the lead angle of the thread.
