CIT-KSH432: Hobbing Spindle For M5-32, Ø10mm Arbor, Adj Angle ±5°, i/o 1:1, Cutter Ø32x30mm
0
- GSI Part
- 5505-000582
- Machine Make
- Citizen
- Machine Model
- M5-32
- Work Location
- Turret
- Operation
- Gear Hobbing
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø10mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±5°
- Notes
- 20-30mm width hob.
- Max Tool Thickness
- 30mm
- Max Tool Diameter
- 32mm

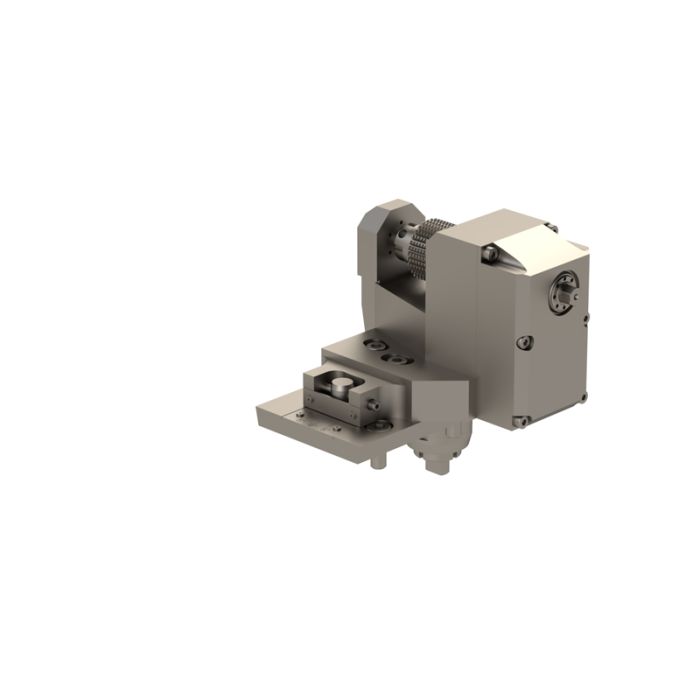

This is a specialty hobbing live tool that mounts on the turret of a Citizen M32 machine. It has a 10mm shank, and can hold a 32mm diameter and 20-30mm wide cutter It has a ±5° adjustability
