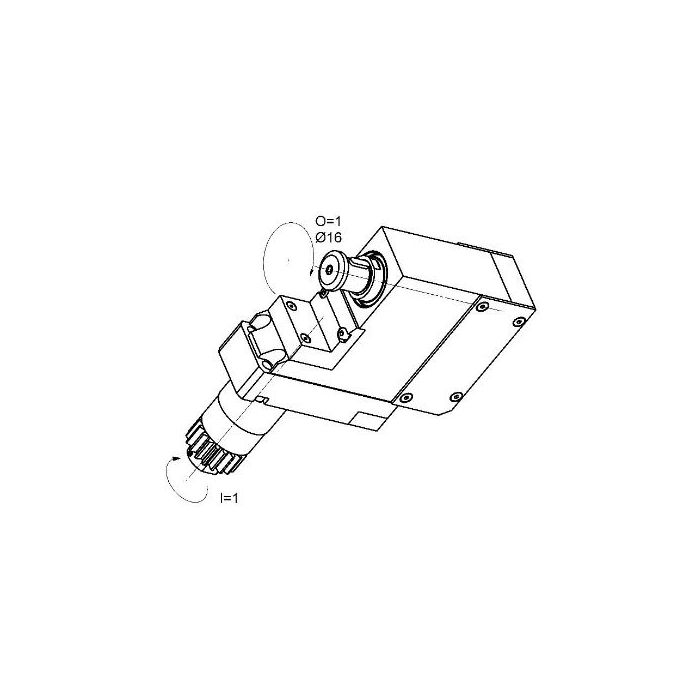

CIT-BSP517: Polygon Spdl For A20/A32/L32/L220, Arbor: Ø16mm, Cutter Ø72 x 15 Max, i/o 1:1, Pos.T09
0
- GSI Part
- 5505-000454
- Machine Make
- Citizen
- Machine Model
- A3-20, A2-32, L2-20, L1-32
- Work Location
- Gang Slide
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø16mm
- Holds # Of Tools
- 1
- Max Tool Thickness
- 15mm
- Max Tool Diameter
- 72mm
Live polygon attachment adds the ability to rapidly generate polygon shapes on workpieces while the workpiece is rotating. Direct fit install on listed models
