CIT-BSP-513: Polygon Spdl For A20/A32/L32/L220, Arbor: Ø13mm, Cutter Ø72 x 8.3, i/o 1.5:1, Pos.T09
0
- GSI Part
- 5505-000452
- Machine Make
- Citizen
- Machine Model
- A3-20, A2-32, L2-20, L1-32
- Work Location
- Gang Slide
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Decreased 1.5X
- Tool Size
- Ø13mm
- Holds # Of Tools
- 1
- Max Tool Thickness
- 8.3mm
- Max Tool Diameter
- 72mm

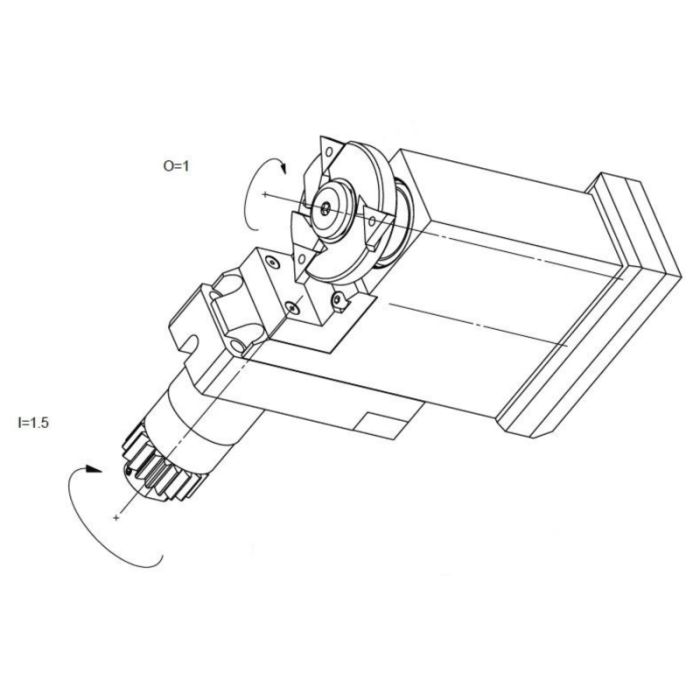

This is a specialty polygon tool for use on Citizen A20/L20/L25/A32/L32 machines. The shank diameter is 13mm and the gear ratio is 1.5:1, giving the tool more torque capability. The max diameter of the mill cutter is 72mm and the max width is 8.3mm.
