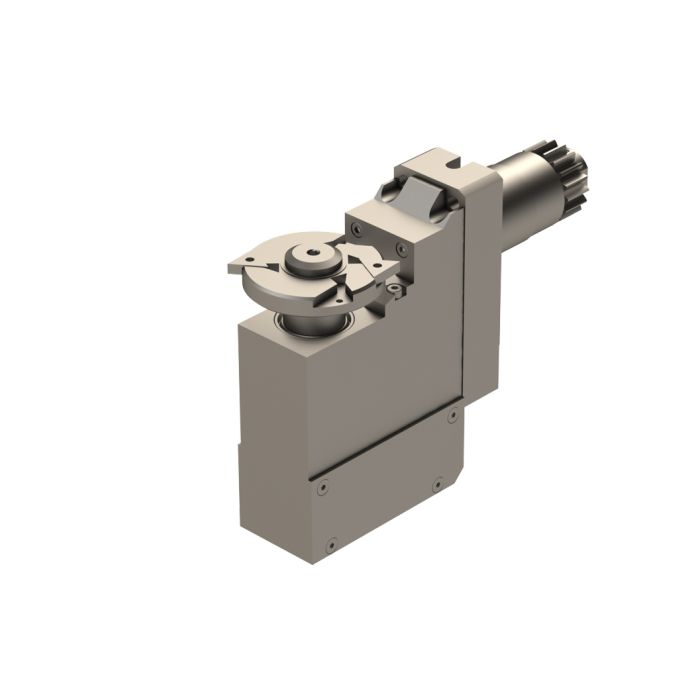

CIT-BSP-510: Polygon Spdl For A20/A32/L32/L220, Arbor: Ø13mm, Cutter Ø60mm x 15mm, i/o 1:1, T10
0
- GSI Part
- 5505-000450
- Machine Make
- Citizen
- Machine Model
- A3-20, A2-32, L2-20, L1-32
- Work Location
- Gang Slide
- Operation
- Polygon Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø13mm
- Holds # Of Tools
- 1
- Notes
- T10 on A20, T07-T09 on L32
- Max Tool Thickness
- 15mm
- Max Tool Diameter
- 60mm
This is a specialty polygon attachment for use on Citizen A20/D25/L20/L25/A32/L32 machines. It has a ø13mm shank, and can hold up to a ø60mm mill that is 15mm thick.
