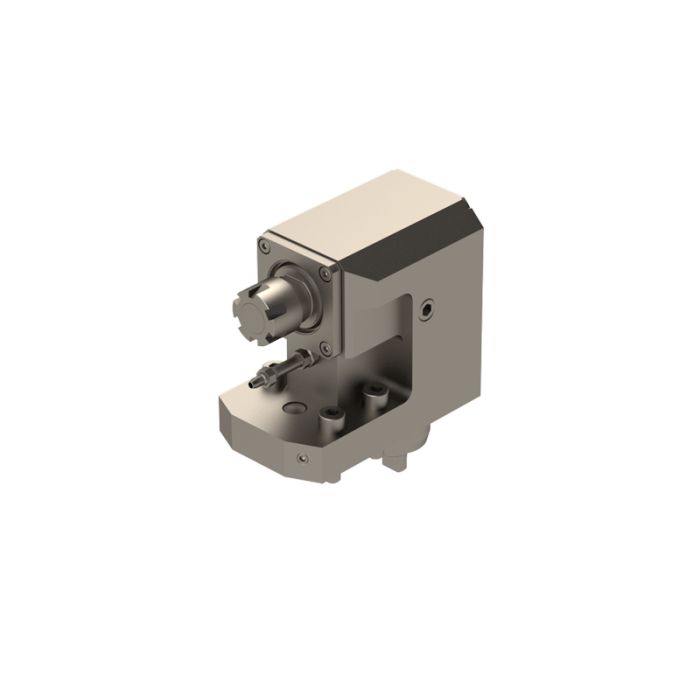

CIT-KSE113: 90° Spindle For M5-32, ER20, i/o 1:1, For Turret, External Coolant, Drill Depth 26.5mm
0
- GSI Part
- 5505-000409
- Machine Make
- Citizen
- Machine Model
- M5-32
- Work Location
- Turret
- Operation
- End Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Max RPM
- 6000
- Tool Size
- ER20
- Holds # Of Tools
- 1
- Notes
- Max tool diameter 13mm. Max tool length 66.5mm.
- Cooling
- External Cooling
This is an axial live tool holder for use on the turret of Citizen M32 and M532 machines. It utilizes ER20 collets for tool holding. This holder has a max length capacity of 66.5mm and a 13mm maximum diameter. It also comes equipped with integrated exterior high pressure coolant capability!
