CIT-BSS-1530: 90° Saw Spindle For A32/L32, ER16, Cutter Ø80 x 3mm max, i/o: 5:3, Position. T31-T34
0
- GSI Part
- 5505-000385
- Machine Make
- Citizen
- Machine Model
- A2-32, L1-32
- Work Location
- Main Spindle, Sub Spindle
- Operation
- Slitting Saw
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Decreased 1.5X
- Max RPM
- 8333
- Tool Size
- ER16
- Holds # Of Tools
- 1
- Max Tool Thickness
- 3mm
- Max Tool Diameter
- 80mm

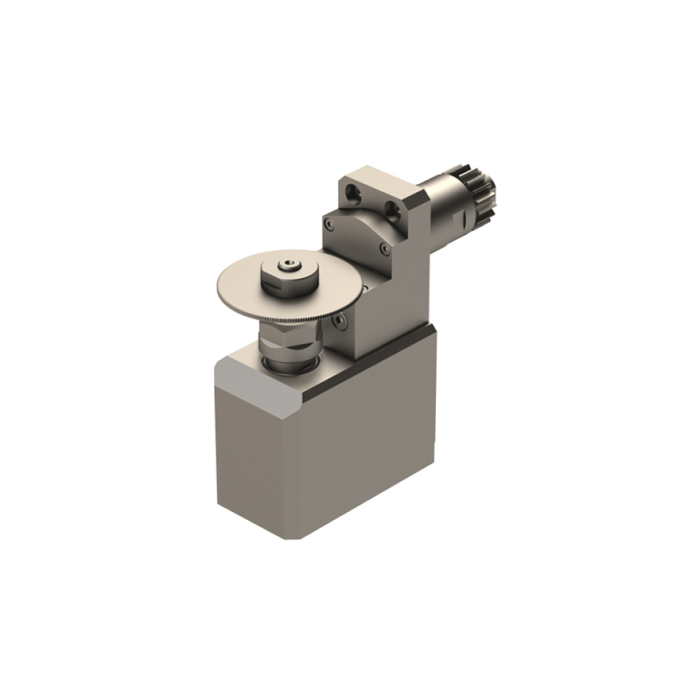

This is a slitting saw tool holder for use on Citizen A32/L32 machines. It mounts on the back tool post so features can be generated while holding the part in the subspindle. The maximum diameter saw that can be used is 80mm and the maximum width is 3mm. The holder has a 5:3 gear ratio allowing for higher torque!
