CIT-CTF1116-D: OD 2 Pos Short Holder 16mm Sq. For M20/32, Ext Coolant Delivery, 2 Heads 1 station
0
- GSI Part
- 5505-000364
- Machine Make
- Citizen
- Machine Model
- M3-20, M4-20, M3-32, M4-32
- Work Location
- Turret
- Operation
- Turning
- Static or Live
- Static Tool
- Single Or Double Ended
- Single Ended
- Tool Size
- 16x16mm
- Holds # Of Tools
- 4
- Cooling
- External Cooling

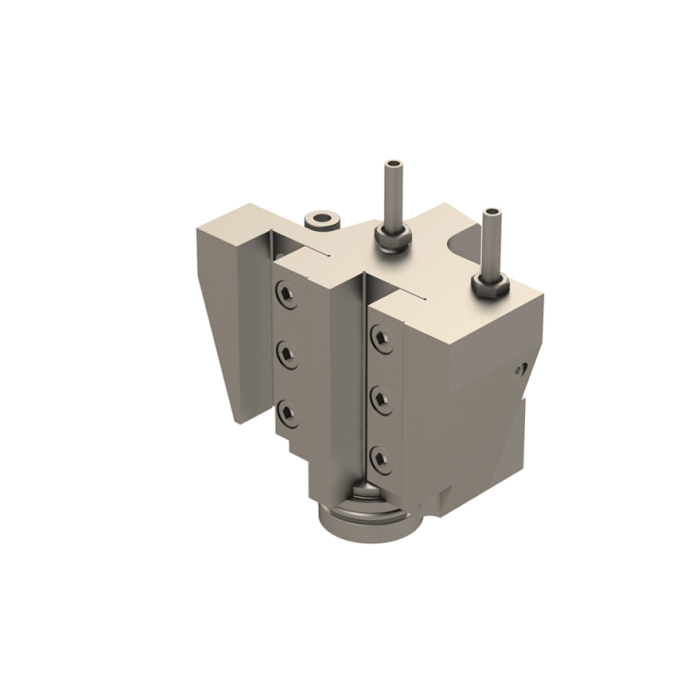

This holder mounts on the turret of the Citizen M32 and M532 machines. It allows for two 16mm square shank tools to be mounted onto the turret. This attachment comes fully integrated with exterior high pressure coolant delivery capability!
