CIT-BSA-2010: 90° (3) Spdle, Dbl End For A3-20-VII,ER16, Adj Angle 0°-21°,i/o 1:1,T09, Req 2 Pos
0
- GSI Part
- 5505-000353
- Machine Make
- Citizen
- Machine Model
- A3-20, A2-32, L1-32, M4-20, M4-32
- Work Location
- Main Spindle
- Operation
- Angled Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Double Ended
- Speed
- 1:1
- Tool Size
- ER16
- Holds # Of Tools
- 6
- Adjustable Range
- Adjustable 0-21°

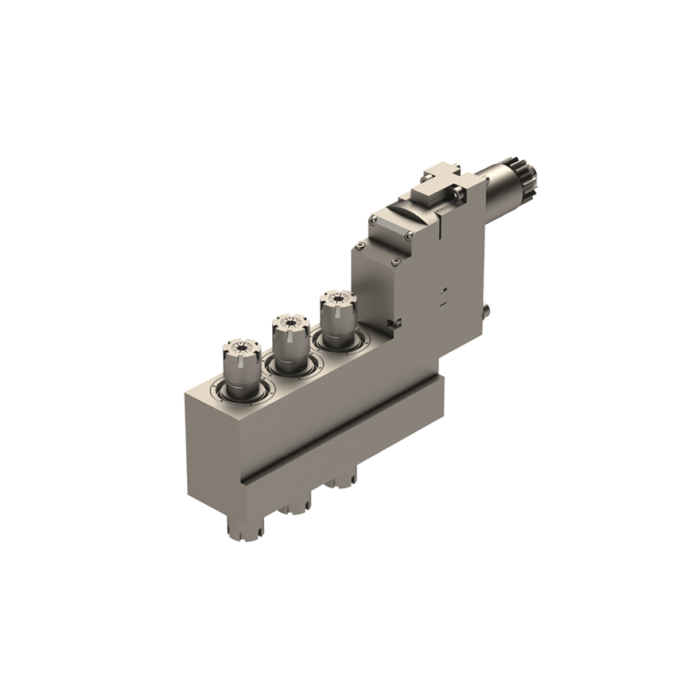

This angular adjustable double ended live tool block allows for front and black live tool work on Citizen A20/D25/A32/L32/M32 and M532 machines! This block has up to 21 degrees of adjustability, mounts on the upper gang tool post, and utilizes ER16 collets for tool holding on each of its 6 stations.
